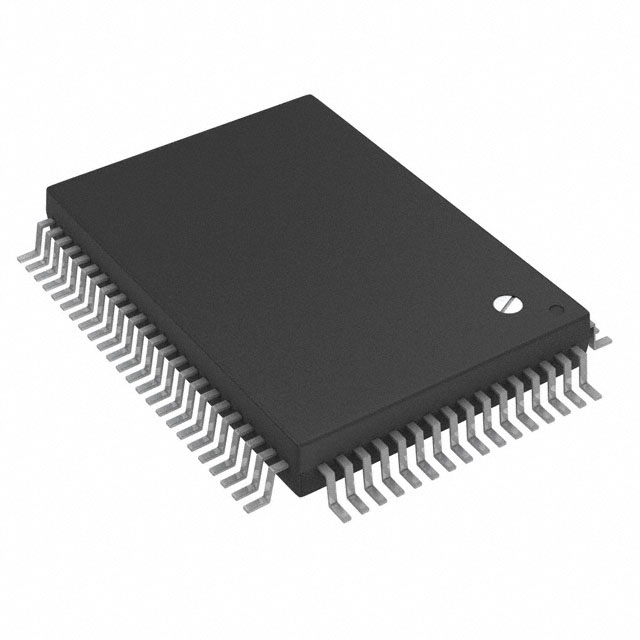

TL16PIR552PH
IC DUAL UART W/FIFO 80-QFPManufacturer: Texas Instruments
Categories: UARTs (Universal Asynchronous Receiver Transmitter)
Quality Control: Learn More
Texas Instruments TL16PIR552PH is a dual Universal Asynchronous Receiver/Transmitter (DUART) IC featuring two channels, each supporting a 16-byte FIFO buffer. This device offers a maximum data rate of 1Mbps and operates within a voltage range of 4.75V to 5.25V. Key functionalities include auto flow control, false start bit detection, IrDA encoder/decoder capabilities, and modem control. The TL16PIR552PH also incorporates a printer port feature. It is supplied in an 80-QFP (14x20) surface-mount package, typically offered in tray packaging. This component finds application in industrial automation, communication systems, and embedded control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Printer Port |
| Packaging | Tray |
| Package / Case | 80-BQFP |
| Number of Channels | 2, DUART |
| Mounting Type | Surface Mount |
| Voltage - Supply | 4.75V ~ 5.25V |
| FIFO's | 16 Byte |
| Protocol | - |
| Data Rate (Max) | 1Mbps |
| Supplier Device Package | 80-QFP (14x20) |
| With Auto Flow Control | Yes |
| With IrDA Encoder/Decoder | Yes |
| With False Start Bit Detection | Yes |
| With Modem Control | Yes |
