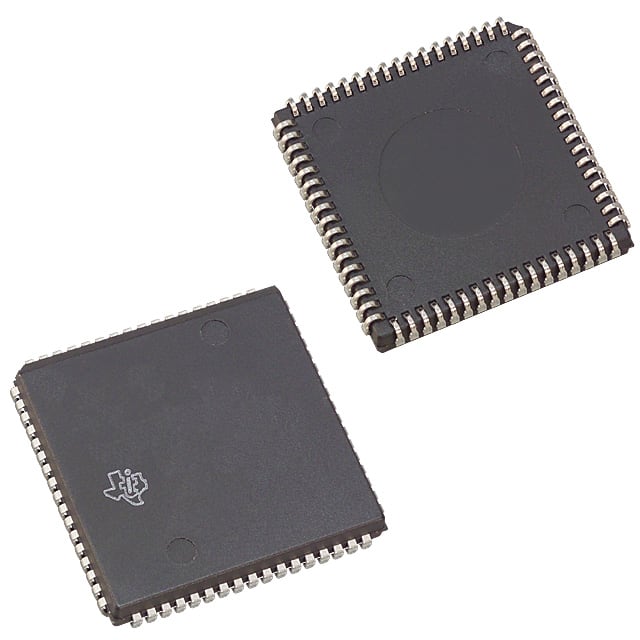

TL16C554AFNG4
IC ASYNC COMM ELEMENT 68-PLCCManufacturer: Texas Instruments
Categories: UARTs (Universal Asynchronous Receiver Transmitter)
Quality Control: Learn More
Texas Instruments TL16C554AFNG4 is a quad-channel Universal Asynchronous Receiver Transmitter (UART) IC. This component features four independent UART channels, each equipped with a 16-byte FIFO buffer to enhance data throughput and reduce CPU overhead. The TL16C554AFNG4 supports asynchronous serial communication up to 1 Mbps and includes on-chip modem control signals and auto flow control capabilities. It also incorporates false start bit detection for improved signal integrity. The device operates over a voltage range of 3V to 5.25V and is supplied in a 68-pin PLCC package suitable for surface mounting. This UART is commonly employed in industrial automation, communication systems, and embedded control applications requiring robust serial data transmission.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 68-LCC (J-Lead) |
| Number of Channels | 4, QUART |
| Mounting Type | Surface Mount |
| Voltage - Supply | 3V ~ 5.25V |
| FIFO's | 16 Byte |
| Protocol | - |
| Data Rate (Max) | 1Mbps |
| Supplier Device Package | 68-PLCC (24.23x24.23) |
| With Auto Flow Control | Yes |
| With IrDA Encoder/Decoder | - |
| With False Start Bit Detection | Yes |
| With Modem Control | Yes |
