TL16C550DPTG4
IC ASYNC COMM ELEMENT 48-LQFPManufacturer: Texas Instruments
Categories: UARTs (Universal Asynchronous Receiver Transmitter)
Quality Control: Learn More
Texas Instruments TL16C550DPTG4 is a single-channel Universal Asynchronous Receiver/Transmitter (UART) IC. This component features a 16-byte FIFO buffer for both transmit and receive operations, significantly reducing CPU overhead. Operating with a maximum data rate of 1Mbps, it supports auto flow control and modem control functions. The TL16C550DPTG4 includes false start bit detection for enhanced data integrity. It is housed in a 48-LQFP (7x7mm) surface-mount package and operates across a voltage range of 2.25V to 5.5V. This UART is commonly employed in industrial automation, networking equipment, and embedded systems requiring reliable serial communication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Number of Channels | 1, UART |
| Mounting Type | Surface Mount |
| Voltage - Supply | 2.25V ~ 5.5V |
| FIFO's | 16 Byte |
| Protocol | - |
| Data Rate (Max) | 1Mbps |
| Supplier Device Package | 48-LQFP (7x7) |
| With Auto Flow Control | Yes |
| With IrDA Encoder/Decoder | - |
| With False Start Bit Detection | Yes |
| With Modem Control | Yes |
Request a Quote
Clients Also Buy
TL16C752CIRHBRG4
IC DUAL UART W/64B FIFO 32-QFN

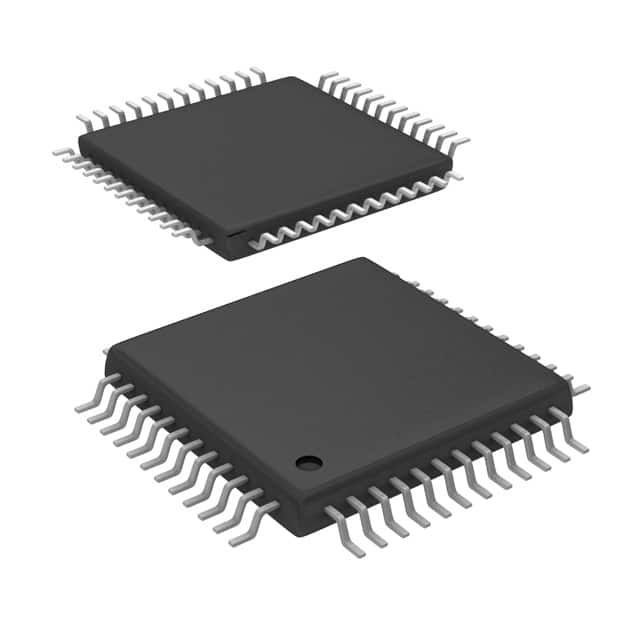

TL16C550CPFB
