TSC2046IRGVRG4
IC SCREEN CNTRL 12BIT 16FNManufacturer: Texas Instruments
Categories: Touch Screen Controllers
Quality Control: Learn More
Texas Instruments TSC2046IRGVRG4 is a 12-bit resistive touchscreen controller. This electronic component features an SPI interface for efficient communication and an internal voltage reference. Designed for 4-wire resistive touchscreens, it provides precise input detection with its 12-bit resolution. The device operates from a supply voltage range of 2.2V to 5.25V and consumes a typical current of 780 µA. Packaged in a 16-VQFN (4x4) with an exposed pad, it is suitable for surface mount applications. The TSC2046IRGVRG4 is commonly utilized in industrial automation, automotive systems, and consumer electronics where accurate touchscreen interaction is critical. It is supplied in Tape & Reel packaging and operates across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

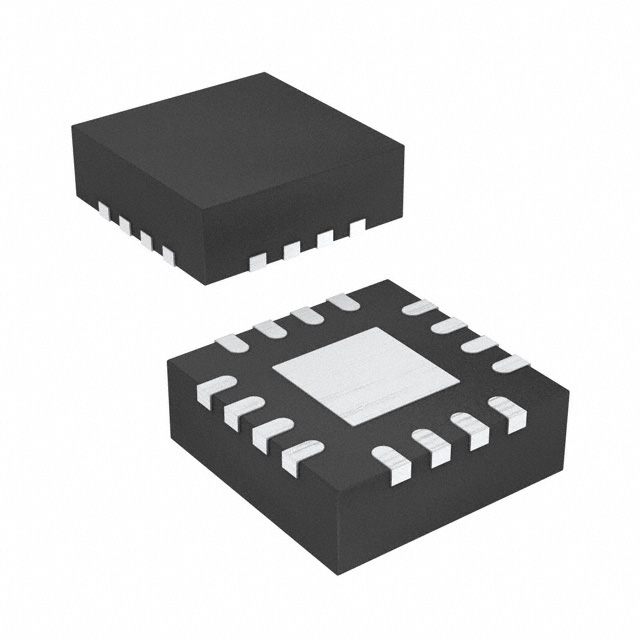

| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 5.25V |
| Resolution (Bits) | 12 b |
| Supplier Device Package | 16-VQFN (4x4) |
| Voltage Reference | Internal |
| Touchscreen | 4 Wire Resistive |
| Current - Supply | 780 µA |
