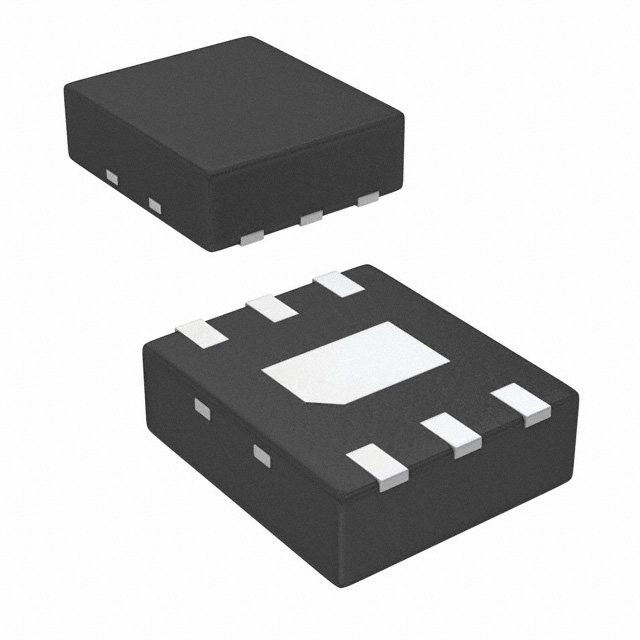

LM26LVCISD-060/NOPB
THERMOSTAT 60DEG ACT HI/LO 6WSONManufacturer: Texas Instruments
Categories: Thermostats - Solid State
Quality Control: Learn More
Texas Instruments LM26LVCISD-060-NOPB is a high-accuracy thermostat with a ±2.2°C tolerance, featuring a switching temperature of 60°C. This device provides both Active High and Active Low outputs, supporting Open Drain and Push-Pull configurations. Its functionality includes trip test capability for verification. The LM26LVCISD-060-NOPB operates with a wide supply voltage range of 1.6V to 5.5V and exhibits a low supply current of 8µA, with a maximum output current of 7mA. Designed for surface mount applications, it comes in a compact 6-WSON (2.2x2.5) package, supplied on tape and reel. This component is suitable for applications in industrial, consumer electronics, and automotive sectors where precise thermal monitoring is critical. The operating temperature range is -50°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Trip Test |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Output | Active High, Active Low |
| Accuracy | ±2.2°C |
| Operating Temperature | -50°C ~ 150°C |
| Current - Supply | 8µA |
| Switching Temperature | 60°C |
| Current - Output (Max) | 7mA |
| Supplier Device Package | 6-WSON (2.2x2.5) |
| Output Function | OverTemp, /OverTemp, VTemp |
| Trip Temperature Threshold | Hot |
| Selectable Hysteresis | No |
| Voltage - Supply | 1.6 V ~ 5.5 V |
