PDRV5023FAEDBZRQ1
MAGNETIC SWITCH UNIPOLAR SOT23-3Manufacturer: Texas Instruments
Categories: Switches (Solid State)
Quality Control: Learn More
Texas Instruments PDRV5023FAEDBZRQ1 is a unipolar Hall effect sensor designed for automotive applications. This digital switch features an open-drain output and operates within a supply voltage range of 2.7V to 38V, with a typical quiescent current of 2.7mA and a maximum output current of 30mA. The device offers temperature compensation and is qualified to AEC-Q100 standards. Its sensing capabilities include a 6mT trip point and a 0.5mT release point, responding to a south pole magnetic field. Packaged in a SOT-23-3 (TO-236-3, SC-59) surface-mount configuration, it is supplied on tape and reel. The PDRV5023FAEDBZRQ1 is suitable for use in automotive systems requiring precise magnetic field detection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.7V ~ 38V |
| Technology | Hall Effect |
| Sensing Range | 6mT Trip, 0.5mT Release |
| Current - Output (Max) | 30mA |
| Current - Supply (Max) | 2.7mA (Typ) |
| Supplier Device Package | SOT-23-3 |
| Test Condition | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy
DRV5013BCQLPGMQ1
MAGNETIC SWITCH LATCH TO92-3

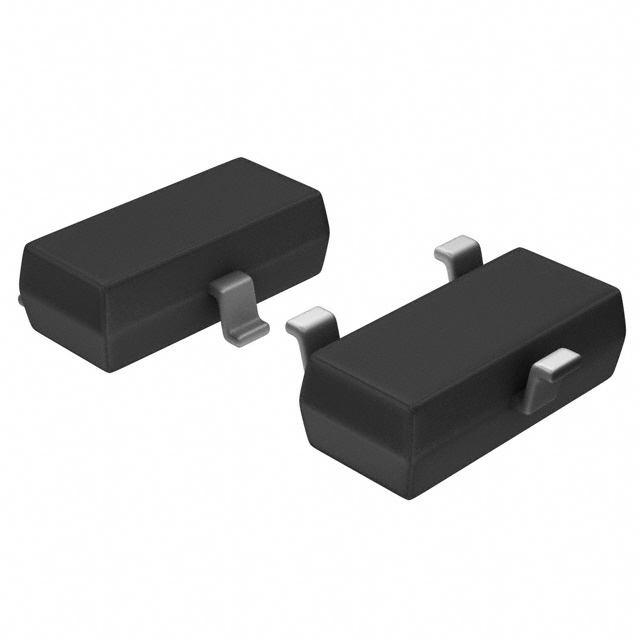

DRV5032AJDBZT
