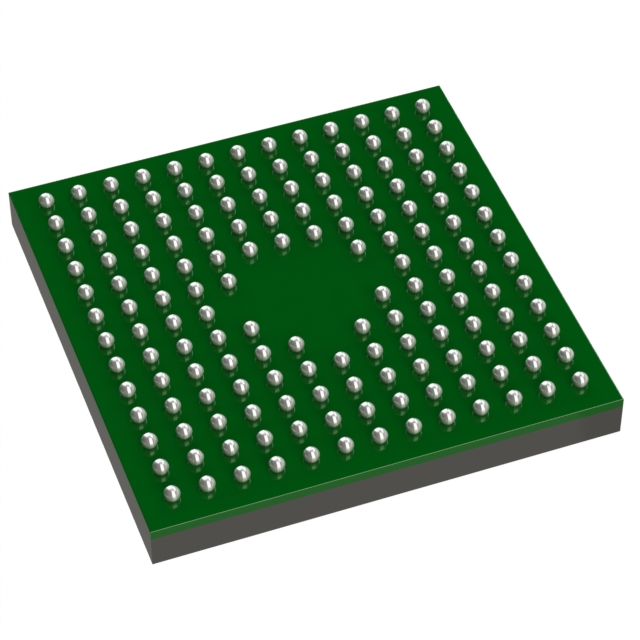

UCD90240ZRBR
IC SUPERVISOR 24 CHANNEL 157BGAManufacturer: Texas Instruments
Categories: Supervisors
Quality Control: Learn More
Texas Instruments UCD90240ZRBR is a 24-channel power sequence controller designed for complex power management applications. This device monitors up to 24 voltage rails, providing precise sequencing and supervision with open-drain or open-collector outputs. The UCD90240ZRBR features a typical reset timeout of 250ns and an active-low reset signal. It is packaged in a 157-ball Microstar Junior (9x9) VFBGA, suitable for surface mount assembly. Operating across a temperature range of -40°C to 85°C, this component is commonly utilized in high-performance computing, telecommunications infrastructure, and industrial automation systems where robust and reliable power sequencing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 157-VFBGA |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Sequencer |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 24 |
| Reset Timeout | 250ns Typical |
| Voltage - Threshold | 3V |
| Supplier Device Package | 157-BGA Microstar Junior (9x9) |
| Programmable | Not Verified |
