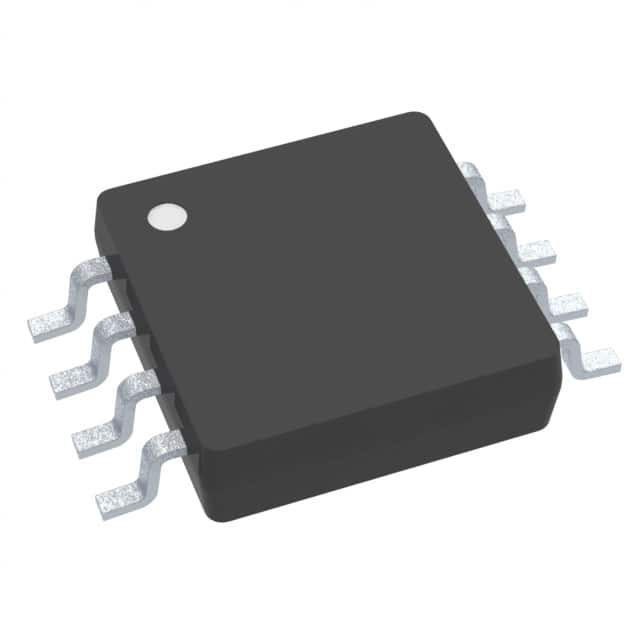

TPS3620-50DGKT
IC SUPERVISOR 1 CHANNEL 8VSSOPManufacturer: Texas Instruments
Categories: Supervisors
Quality Control: Learn More
Texas Instruments TPS3620-50DGKT is a single-channel supervisor IC designed for robust power monitoring applications. This component features a push-pull, totem-pole output stage and provides a reset signal asserted when the monitored voltage drops below a threshold of 4.55V. The reset timeout is a minimum of 60ms, ensuring reliable system reset sequencing. Operating within a temperature range of -40°C to 85°C, it is suitable for demanding environments. The TPS3620-50DGKT is housed in an 8-VSSOP package, ideal for surface-mount assembly. This device finds application in battery backup circuits and other power management systems across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Battery Backup Circuit |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 60ms Minimum |
| Voltage - Threshold | 4.55V |
| Supplier Device Package | 8-VSSOP |
| Programmable | Not Verified |
