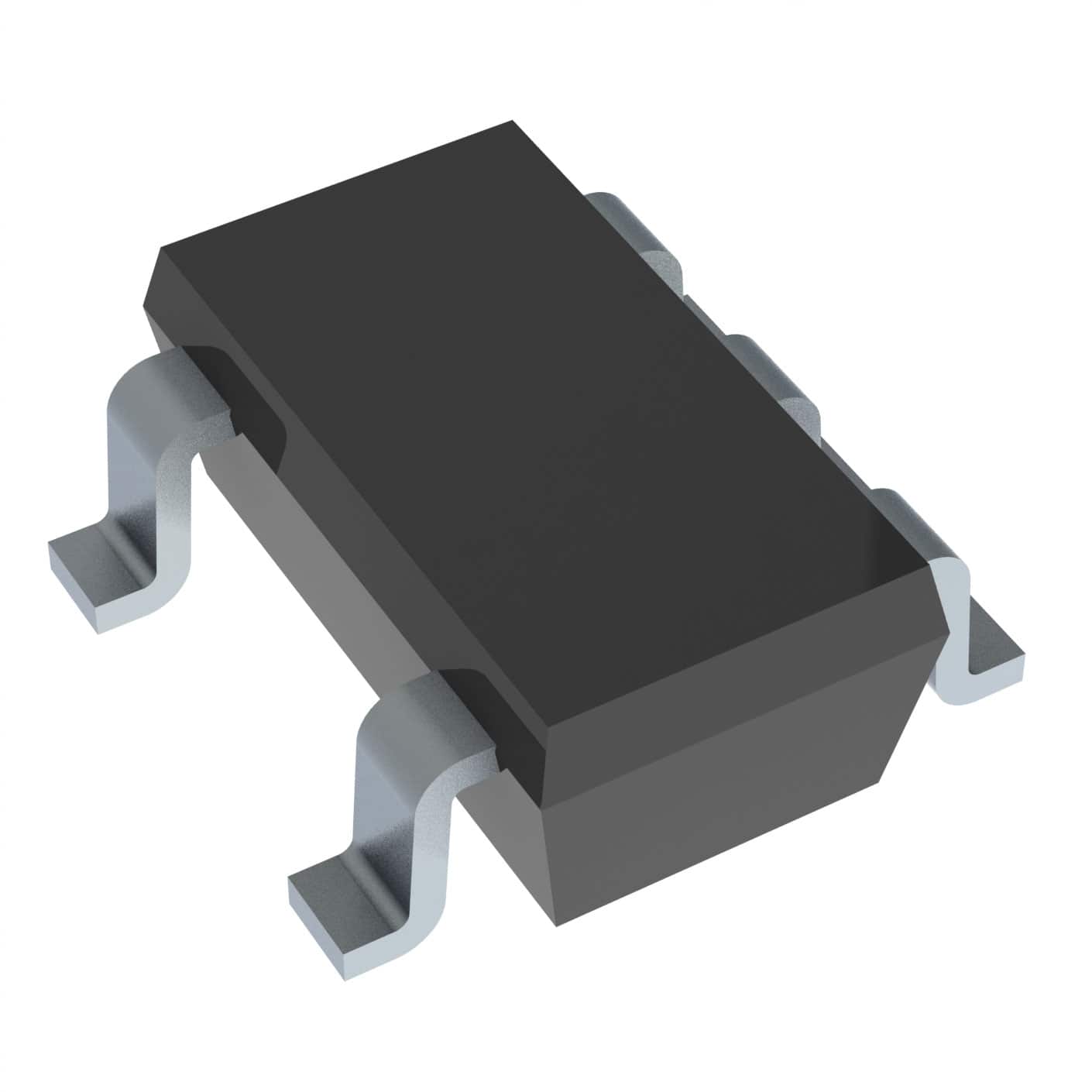

TPS3123J18DBVT
IC SUPERVISOR 1 CHANNEL SOT23-5Manufacturer: Texas Instruments
Categories: Supervisors
Quality Control: Learn More
Texas Instruments TPS3123J18DBVT is a single-channel supervisor IC. This device offers a simple reset function with an active-low output and a minimum reset timeout of 100ms. It monitors a single voltage threshold of 1.62V, employing a push-pull, totem-pole output configuration. The TPS3123J18DBVT is delivered in a SOT-23-5 package, suitable for surface mount applications. Its operating temperature range is -40°C to 85°C, making it appropriate for demanding environments. This component finds application in industrial automation, consumer electronics, and automotive systems where reliable power-on reset functionality is critical. The component is supplied on a tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 100ms Minimum |
| Voltage - Threshold | 1.62V |
| Supplier Device Package | SOT-23-5 |
| Programmable | Not Verified |
