LM3702XCTPX-308/NOPB
IC SUPERVISOR 1 CHANNEL 9USMDManufacturer: Texas Instruments
Categories: Supervisors
Quality Control: Learn More

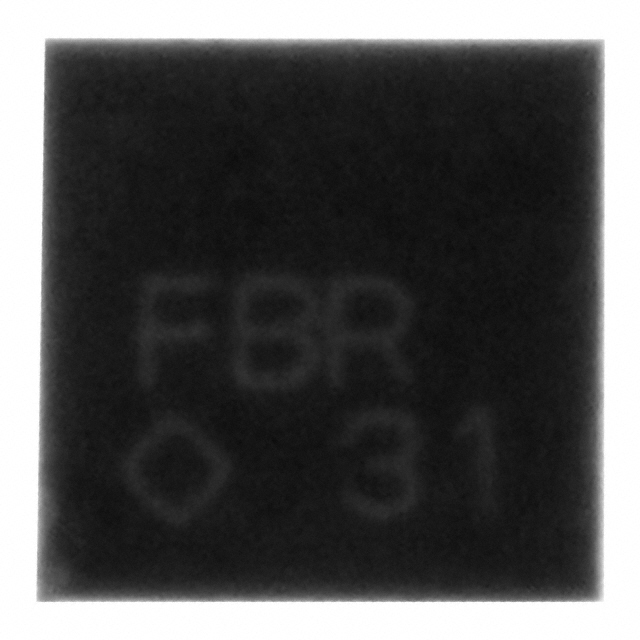

Texas Instruments LM3702XCTPX-308-NOPB is a single-channel supervisor IC featuring a push-pull, totem-pole output. This component is designed for surface-mount applications and comes in a 9-DSBGA package, supplied on tape and reel. It monitors a single voltage threshold of 3.08V, with an active-low reset signal that has a minimum timeout of 140ms. The LM3702XCTPX-308-NOPB operates within an industrial temperature range of -40°C to 85°C. It is suitable for use in applications requiring precise power supply monitoring and reset generation, commonly found in portable electronics, automotive systems, and industrial control equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-UFBGA |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 3.08V |
| Supplier Device Package | 9-DSBGA |
| Programmable | Not Verified |
