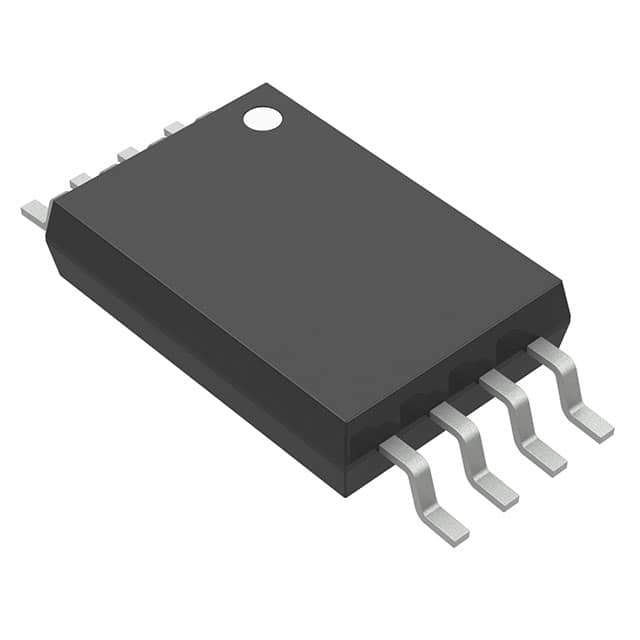

UCC3976PW
IC TRNSF CNTRLR DUAL FET 8-TSSOPManufacturer: Texas Instruments
Categories: Specialized
Quality Control: Learn More
The Texas Instruments UCC3976PW is a dual N-channel MOSFET controller designed for advanced power supply applications. This 8-TSSOP package component operates within a 3V to 13.5V supply voltage range and draws a quiescent current of 1mA. Its surface-mount design facilitates integration into compact PCBs. The UCC3976PW is utilized in power supply circuits, offering robust control for dual FET configurations. Its 8-TSSOP packaging ensures compatibility with standard automated assembly processes. This device is a key component for designers in sectors requiring efficient power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: Not For New DesignsPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 13.5V |
| Applications | Power Supplies |
| Current - Supply | 1mA |
| Supplier Device Package | 8-TSSOP |
