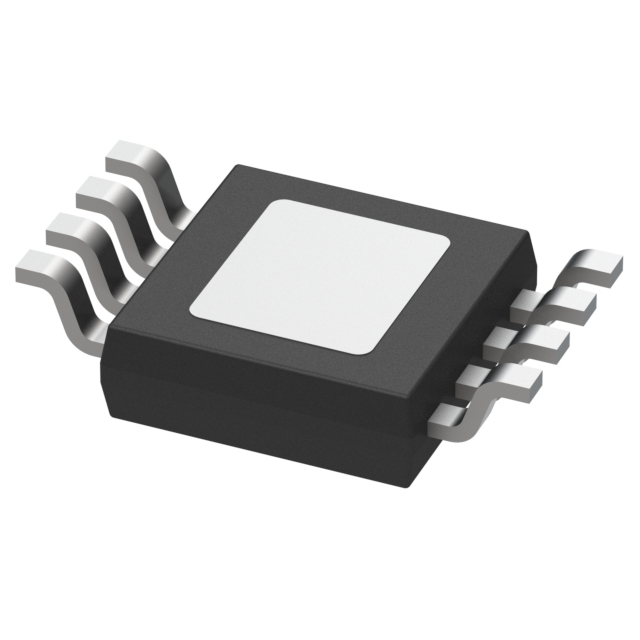

UCC25800AQDGNQ1
IC ISOLATIONManufacturer: Texas Instruments
Categories: Specialized
Quality Control: Learn More
The Texas Instruments UCC25800AQDGNQ1 is a high-performance transformer driver power management integrated circuit designed for demanding automotive applications. This AEC-Q100 qualified component is supplied in an 8-HVSSOP package, suitable for surface mounting. Operating within a wide supply voltage range of 9V to 34V, the UCC25800AQDGNQ1 features a low quiescent current of 14mA. Its robust design ensures reliable operation across an extended temperature range of -40°C to 125°C (TA). This specialized IC is integral to advanced automotive systems requiring efficient and precise transformer drive capabilities.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-PowerTSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 9V ~ 34V |
| Applications | Transformer Driver |
| Current - Supply | 14mA |
| Supplier Device Package | 8-HVSSOP |
| Grade | Automotive |
| Qualification | AEC-Q100 |
