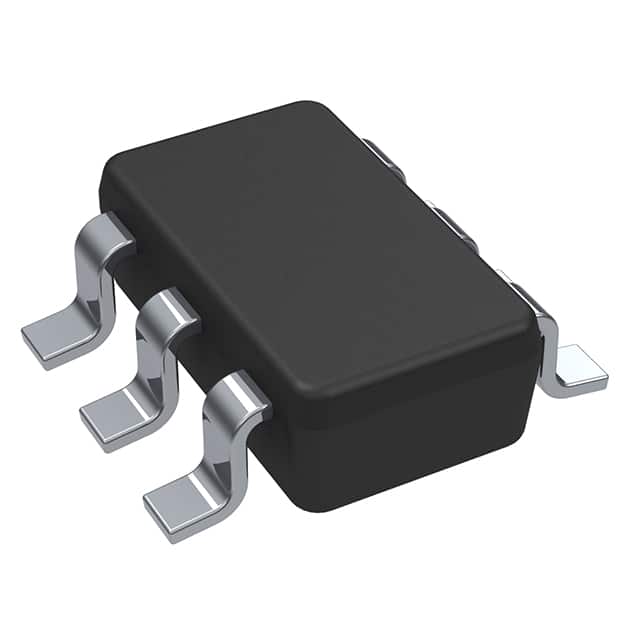

SN6505BDBVT
IC TRANSFORMER DRIVER SOT23-6Manufacturer: Texas Instruments
Categories: Specialized
Quality Control: Learn More
Texas Instruments SN6505BDBVT is a transformer driver power management integrated circuit. This device, housed in a SOT-23-6 package, operates from a 2.25V to 5.5V supply and draws a typical quiescent current of 1.56mA. Designed for surface mount applications, it features an operating temperature range of -55°C to 125°C. The SN6505BDBVT is suitable for use in various industrial applications requiring efficient transformer driving. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2.25V ~ 5.5V |
| Applications | Transformer Driver |
| Current - Supply | 1.56mA |
| Supplier Device Package | SOT-23-6 |
