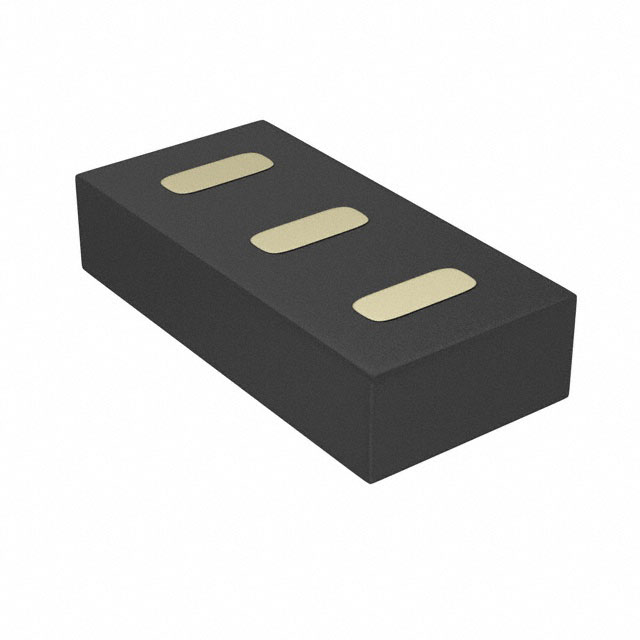

CSD25485F5T
MOSFET P-CH 20V 5.3A 3PICOSTARManufacturer: Texas Instruments
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 5.3A (Ta) 1.4W (Ta) Surface Mount 3-PICOSTAR
Additional Information
Series: FemtoFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.3A (Ta) |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 900mA, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Ta) |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Supplier Device Package | 3-PICOSTAR |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 8V |
| Vgs (Max) | -12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 533 pF @ 10 V |
Request a Quote
