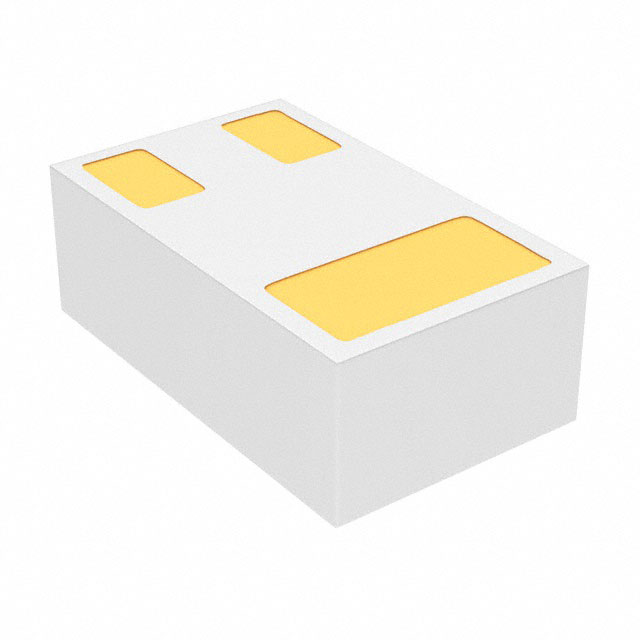

CSD23382F4
MOSFET P-CH 12V 3.5A 3PICOSTARManufacturer: Texas Instruments
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 12 V 3.5A (Ta) 500mW (Ta) Surface Mount 3-PICOSTAR
Additional Information
Series: FemtoFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 76mOhm @ 500mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | 3-PICOSTAR |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.35 nC @ 6 V |
| Input Capacitance (Ciss) (Max) @ Vds | 235 pF @ 6 V |
Request a Quote
Clients Also Buy
CSD18541F5
MOSFET N-CH 60V 2.2A 3PICOSTAR
CSD23382F4T
MOSFET P-CH 12V 3.5A 3PICOSTAR

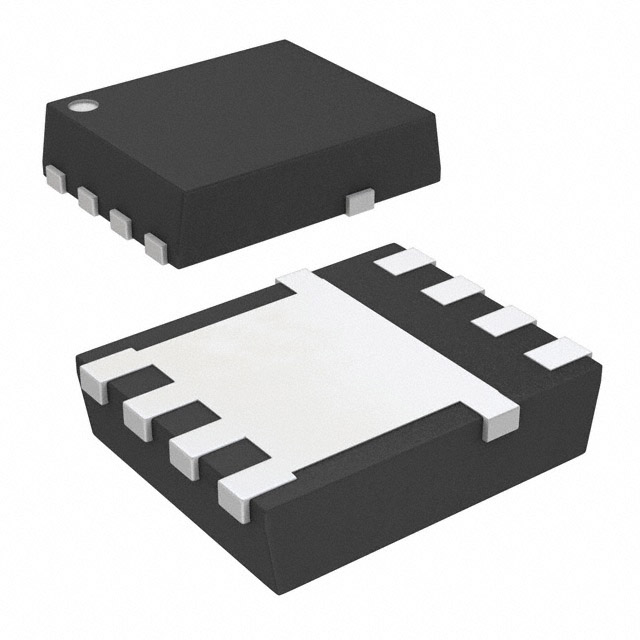

CSD17559Q5T
