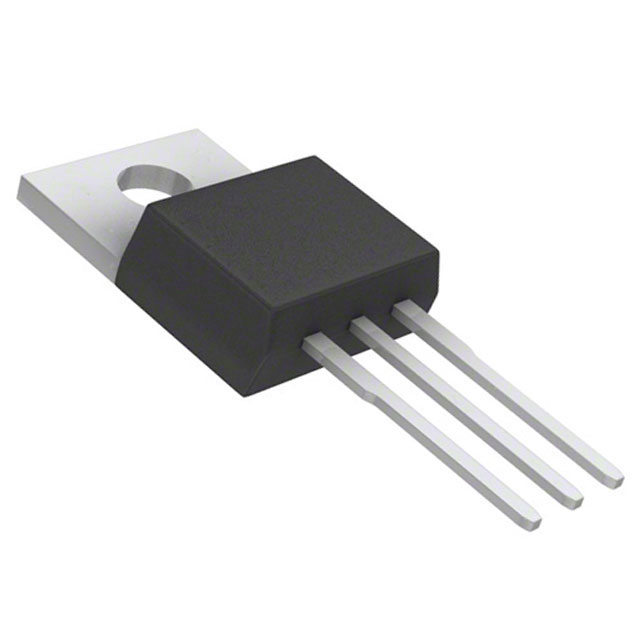

CSD18511KCS
MOSFET N-CH 40V 194A TO220-3Manufacturer: Texas Instruments
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 194A (Ta) 188W (Ta) Through Hole TO-220-3
Additional Information
Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 194A (Ta) |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 100A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 188W (Ta) |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Supplier Device Package | TO-220-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 64 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5940 pF @ 20 V |
