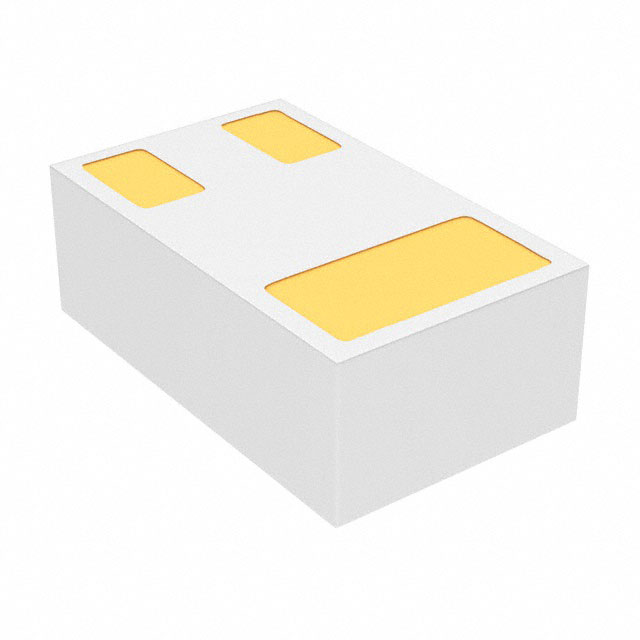

CSD17484F4T
MOSFET N-CH 30V 3A 3PICOSTARManufacturer: Texas Instruments
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 3A (Ta) 500mW (Ta) Surface Mount 3-PICOSTAR
Additional Information
Series: FemtoFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Rds On (Max) @ Id, Vgs | 121mOhm @ 500mA, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | 3-PICOSTAR |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 8V |
| Vgs (Max) | 12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 2.04 nC @ 8 V |
| Input Capacitance (Ciss) (Max) @ Vds | 195 pF @ 15 V |
