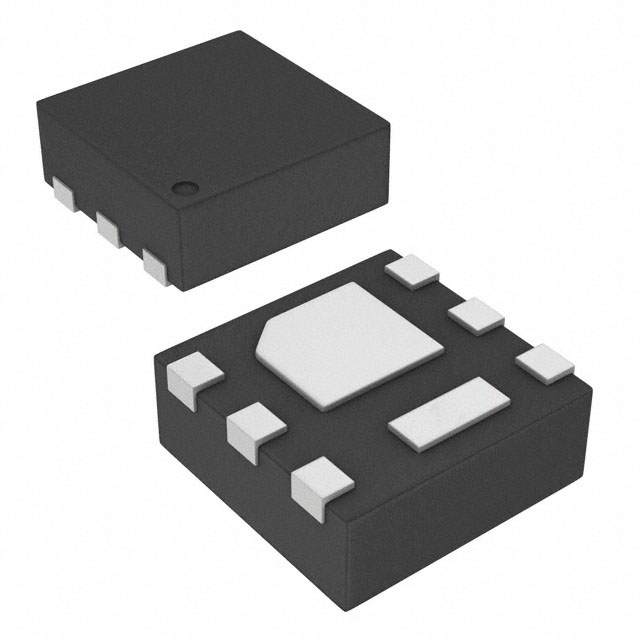

CSD16301Q2
MOSFET N-CH 25V 5A 6SONManufacturer: Texas Instruments
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 25 V 5A (Tc) 2.3W (Ta) Surface Mount 6-SON
Additional Information
Series: NexFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 4A, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta) |
| Vgs(th) (Max) @ Id | 1.55V @ 250µA |
| Supplier Device Package | 6-SON |
| Drive Voltage (Max Rds On, Min Rds On) | 3V, 8V |
| Vgs (Max) | +10V, -8V |
| Drain to Source Voltage (Vdss) | 25 V |
| Gate Charge (Qg) (Max) @ Vgs | 2.8 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 340 pF @ 12.5 V |
