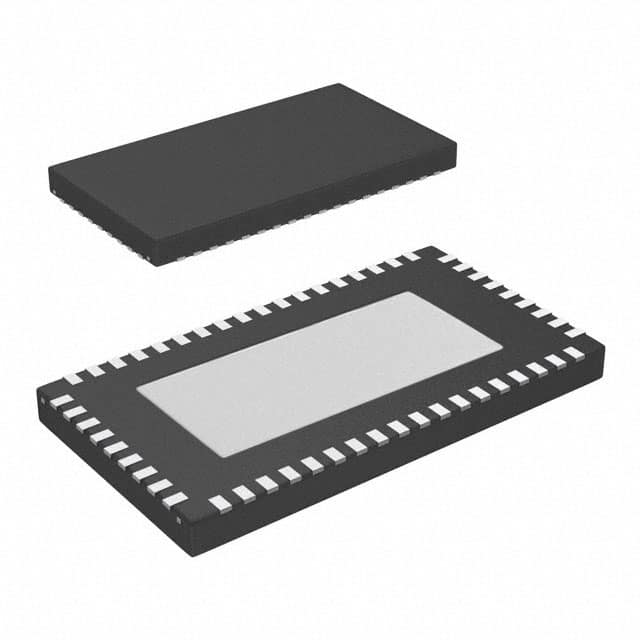

DS125BR820NJYR
IC REDRIVER PCIE/SAS/SATA 54WQFNManufacturer: Texas Instruments
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
Buffer, ReDriver 8 Channel 12.5Gbps 54-WQFN (10x5.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-WFQFN Exposed Pad |
| Delay Time | 80ps |
| Number of Channels | 8 |
| Mounting Type | Surface Mount |
| Output | CML |
| Type | Buffer, ReDriver |
| Input | CML |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 3.3V |
| Applications | PCIe, SAS, SATA |
| Current - Supply | 220mA |
| Data Rate (Max) | 12.5Gbps |
| Supplier Device Package | 54-WQFN (10x5.5) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
