SN65LV1224DB
IC DESERIALIZER 660MBPS 28SSOPManufacturer: Texas Instruments
Categories: Serializers, Deserializers
Quality Control: Learn More
Texas Instruments SN65LV1224DB is a high-speed deserializer designed for efficient data transmission. This electronic component features a single LVDS input and ten LVDS outputs, capable of operating at data rates up to 660Mbps. The SN65LV1224DB is housed in a 28-SSOP (0.209", 5.30mm Width) package, suitable for surface mount applications. It operates within a voltage supply range of 3V to 3.6V and is specified for an ambient temperature range of -40°C to 85°C. This device is commonly utilized in applications requiring the conversion of serial data streams to parallel data, such as high-bandwidth video processing, industrial automation, and telecommunications systems. The SN65LV1224DB is supplied in a tube package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Output Type | LVDS |
| Mounting Type | Surface Mount |
| Number of Outputs | 10 |
| Function | Deserializer |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.6V |
| Data Rate | 660Mbps |
| Input Type | LVDS |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
Request a Quote
Clients Also Buy
TLK2521IPAPG4
IC TRANSCEIVR 1-2.5GBPS 64HTQFP
DS90UH947NTRGCRQ1
1080P LVDS TO CML SERIALIZER

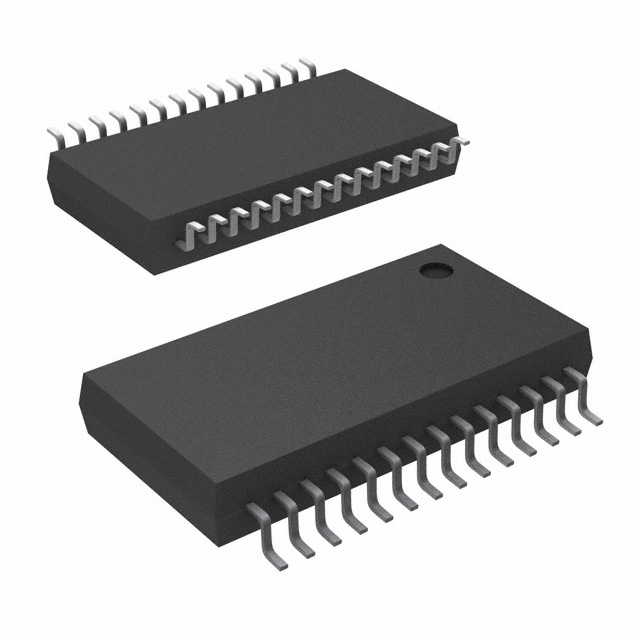

DS92LV1212AMSA/NOPB
