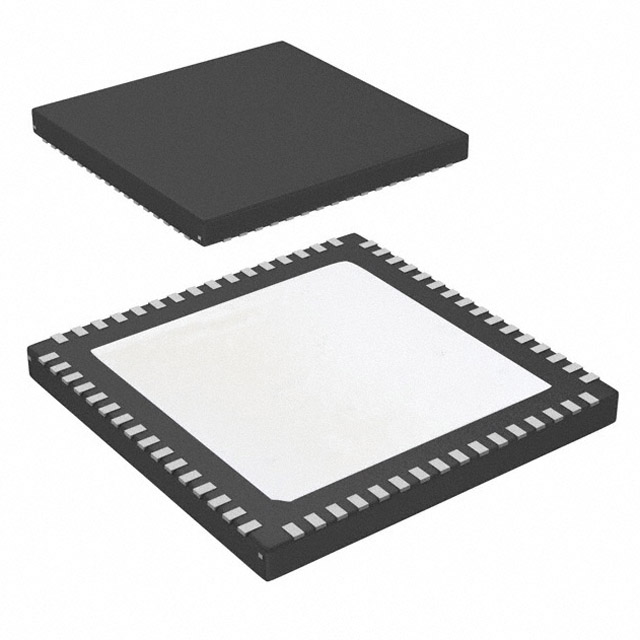

DS90UH940TNKDTQ1
IC DESERIAL HDMI TO FPD 64WQFNManufacturer: Texas Instruments
Categories: Serializers, Deserializers
Quality Control: Learn More
The Texas Instruments DS90UH940TNKDTQ1 is a high-performance deserializer designed for automotive applications. This AEC-Q100 qualified component supports a data rate of 3.36Gbps and features FPD-Link III and LVDS input types, along with CSI-2 and MIPI output types. It offers three input channels and two output channels, enabling flexible system design. The DS90UH940TNKDTQ1 operates across a temperature range of -40°C to 105°C and requires supply voltages of 1.2V, 1.8V, and 3.3V. It is supplied in a 64-WQFN (9x9) package suitable for surface mounting and is delivered on tape and reel. This component is utilized in advanced driver-assistance systems (ADAS) and automotive infotainment systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-WFQFN Exposed Pad |
| Output Type | CSI-2, MIPI |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Deserializer |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 1.2V, 1.8V, 3.3V |
| Data Rate | 3.36Gbps |
| Input Type | FPD-Link III, LVDS |
| Number of Inputs | 3 |
| Supplier Device Package | 64-WQFN (9x9) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
