CC1150-RTY1
RF TX IC 2-FSK 300-348MHZ 16QFNManufacturer: Texas Instruments
Categories: RF Transmitters
Quality Control: Learn More
Texas Instruments CC1150-RTY1 RF Transmitter IC. This device supports 2-FSK, ASK, GFSK, MSK, and OOK modulations across multiple frequency bands: 300-348MHz, 400-464MHz, and 800-928MHz. It offers configurable output power from -30dBm to 10dBm and achieves a maximum data rate of 500kBaud. The CC1150-RTY1 features a surface mount design with a 16-VQFN exposed pad package, utilizing a PCB mount antenna connector. Operating voltage is between 1.8V and 3.6V, with a typical transmitting current of 28.1mA. This component is suitable for applications in AMR, ISM, RKE, and SRD markets. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |

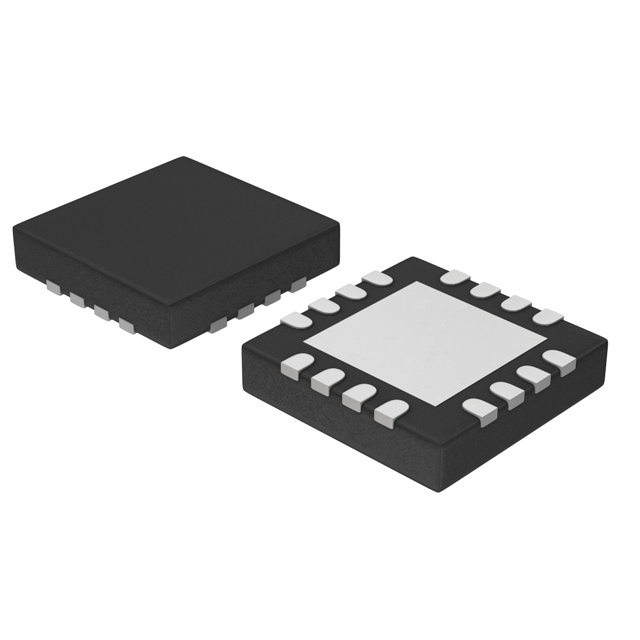

| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz |
| Memory Size | - |
| Modulation or Protocol | 2-FSK, ASK, GFSK, MSK, OOK |
| Data Interface | PCB, Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Power - Output | -30dBm ~ 10dBm |
| Applications | AMR, ISM, RKE, SRD |
| Data Rate (Max) | 500kBaud |
| Current - Transmitting | 28.1mA |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | 16-VQFN (4x4) |
| Programmable | Not Verified |
