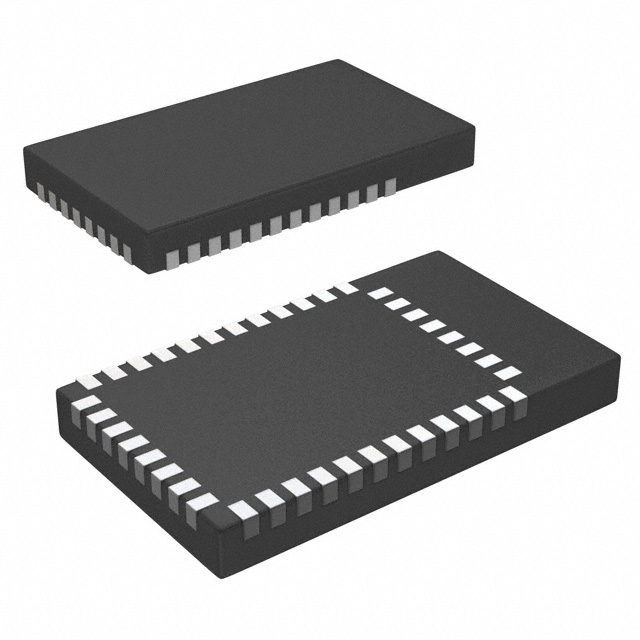

LMX9838SB/NOPB
IC RF TXRX+MCU BLUETOOTH 70LGAManufacturer: Texas Instruments
Categories: RF Transceiver ICs
Quality Control: Learn More
The Texas Instruments LMX9838SB-NOPB is a versatile Bluetooth v2.0 wireless transceiver with an integrated microcontroller. Operating in the 2.4GHz band, this component offers a maximum data rate of 704kbps and a transmit power of 0dBm, with a receive sensitivity of -80dBm. It features 16kB of RAM for embedded applications and includes 3 general-purpose I/O pins. The device supports UART serial interfaces for communication. Typical current consumption is 65mA during both transmitting and receiving operations. Designed for surface mount installation, the LMX9838SB-NOPB is housed in a 70-LGA package and operates within a temperature range of -40°C to 85°C. This component finds application in consumer electronics and industrial automation systems requiring robust wireless connectivity.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 70-LGA |
| Sensitivity | -80dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 16kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 3.6V |
| Power - Output | 0dBm |
| Protocol | Bluetooth v2.0 |
| Current - Receiving | 65mA |
| Data Rate (Max) | 704kbps |
| Current - Transmitting | 65mA |
| Supplier Device Package | 70-PLGA |
| GPIO | 3 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
