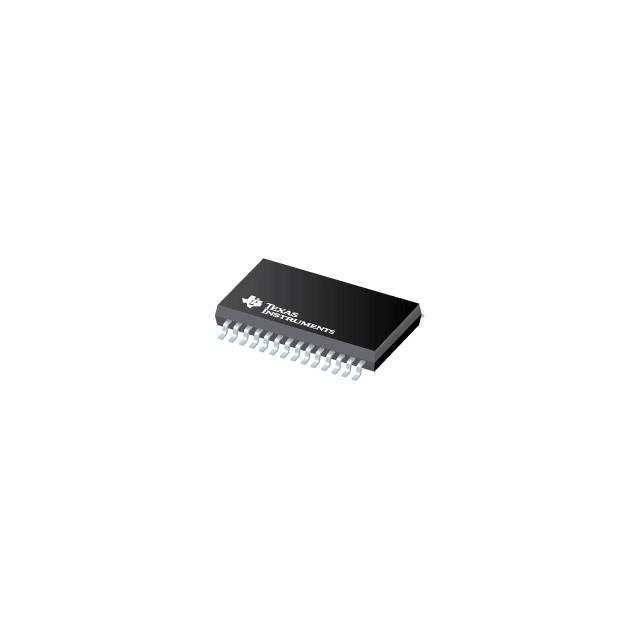

CC400-RTR2
IC RF TXRX ISM<1GHZ 28SSOPManufacturer: Texas Instruments
Categories: RF Transceiver ICs
Quality Control: Learn More
Texas Instruments CC400-RTR2 is a radio frequency transceiver IC designed for general ISM band applications below 1GHz. This component operates within a frequency range of 300MHz to 500MHz, supporting FSK modulation and offering a maximum data rate of 9.6kbps. The CC400-RTR2 features a transmit output power of up to 14dBm and a receive sensitivity of -110dBm. It requires a supply voltage between 2.7V and 3.3V, drawing 23mA in receive mode and 33mA to 77mA during transmission. Communication is managed via an SPI serial interface. This device is provided in a 28-SSOP package suitable for surface mounting and is supplied on tape and reel. The CC400-RTR2 is commonly utilized in industrial, medical, and consumer electronics sectors for short-range wireless communication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Sensitivity | -110dBm |
| Mounting Type | Surface Mount |
| Frequency | 300MHz ~ 500MHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.3V |
| Power - Output | 14dBm (Max) |
| Protocol | - |
| Current - Receiving | 23mA |
| Data Rate (Max) | 9.6kbps |
| Current - Transmitting | 33mA ~ 77mA |
| Supplier Device Package | 28-SSOP |
| Modulation | FSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
