CC2564RVMR
IC RF TXRX BLE 76VQFNManufacturer: Texas Instruments
Categories: RF Transceiver ICs
Quality Control: Learn More
Texas Instruments CC2564RVMR is a Bluetooth v4.0 RF transceiver IC operating at 2.4GHz. This device supports GFSK and GMSK modulation, with data rates up to 4Mbps. The CC2564RVMR offers a transmit power of 12dBm and a receive sensitivity of -95dBm. Its current consumption is approximately 40.5mA to 41.2mA for both transmit and receive modes. Serial interfaces include I2S and UART for flexible system integration. The component is housed in a 76-VQFN Dual Rows, Exposed Pad package and is designed for surface mount applications. Operating temperature ranges from -40°C to 85°C, with a supply voltage range of 2.2V to 4.8V. This transceiver is utilized in various industries, including consumer electronics and wireless communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

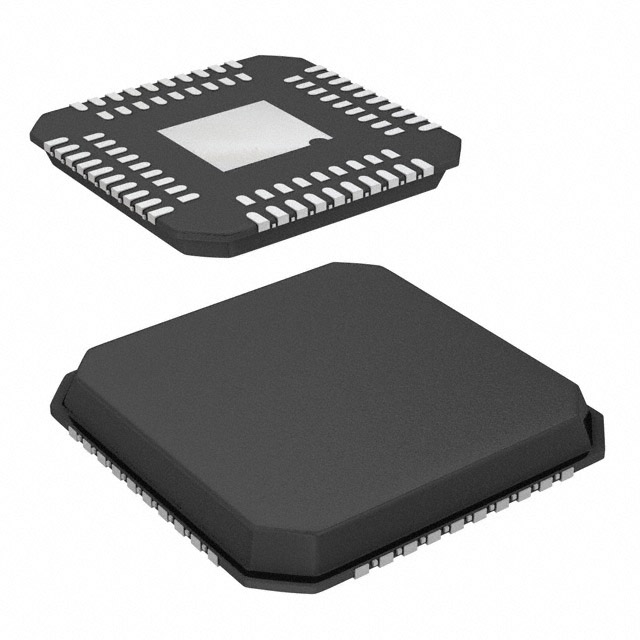

| Package / Case | 76-VQFN Dual Rows, Exposed Pad |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 4.8V |
| Power - Output | 12dBm |
| Protocol | Bluetooth v4.0 |
| Current - Receiving | 40.5mA ~ 41.2mA |
| Data Rate (Max) | 4Mbps |
| Current - Transmitting | 40.5mA ~ 41.2mA |
| Supplier Device Package | 76-VQFNP-MR (8x8) |
| Modulation | GFSK, GMSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2S, UART |
| Programmable | Not Verified |
