TRF3702IRHCG4
RF MODULATOR 1.5GHZ-2.5GHZ 16QFNManufacturer: Texas Instruments
Categories: RF Modulators
Quality Control: Learn More

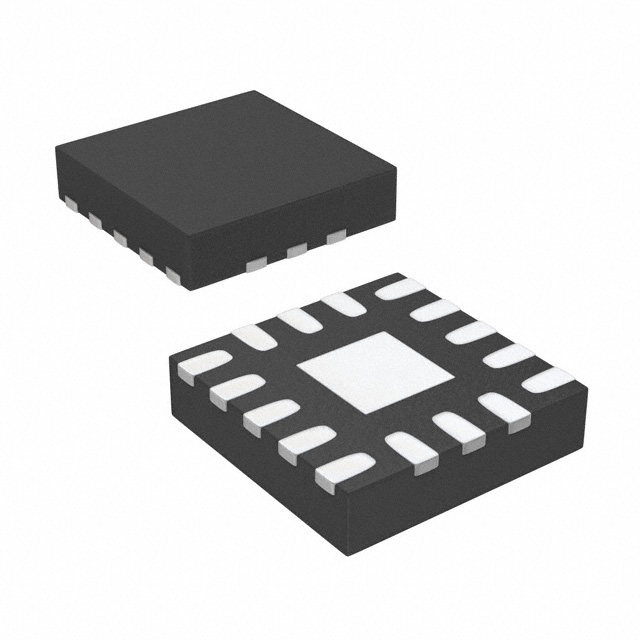

Texas Instruments TRF3702IRHCG4 is a versatile RF modulator IC operating across a 1.5GHz to 2.5GHz frequency range. Designed for surface mount applications, this component is housed in a 16-VQFN (4x4) exposed pad package. It features a typical supply current of 170 mA and operates within a voltage range of 4.5V to 5.5V. The modulator offers a noise floor of -155dBm/Hz and an output power of -2.5dBm, with a P1dB specification of 7dBm. This device finds application in wireless infrastructure, broadband communication systems, and test and measurement equipment. The TRF3702IRHCG4 is provided in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Modulator |
| Voltage - Supply | 4.5V ~ 5.5V |
| P1dB | 7dBm |
| Test Frequency | 1.842GHz |
| LO Frequency | 1.5GHz ~ 2.5GHz |
| RF Frequency | 1.5GHz ~ 2.5GHz |
| Output Power | -2.5dBm |
| Noise Floor | -155dBm/Hz |
| Supplier Device Package | 16-VQFN (4x4) |
| Current - Supply | 170 mA |
