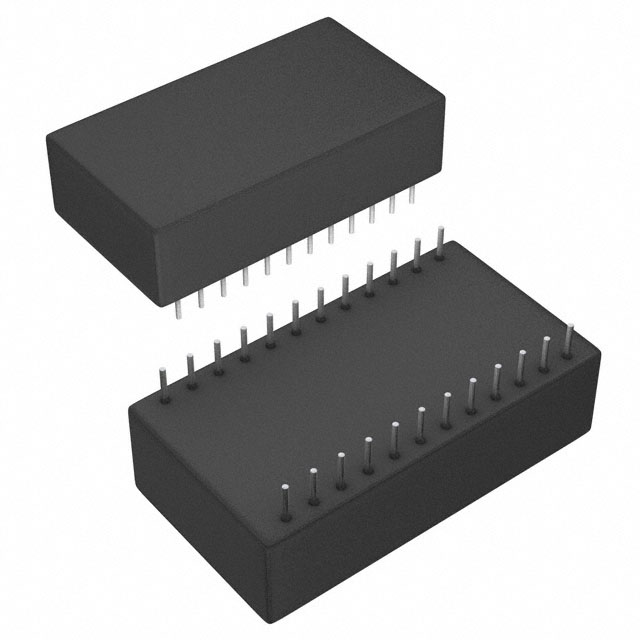

BQ3287EMT
IC RTC CLOCK/CALENDAR PAR 24DIPManufacturer: Texas Instruments
Categories: Real Time Clocks
Quality Control: Learn More
The Texas Instruments BQ3287EMT is a Clock/Calendar IC designed for precise timekeeping applications. This component, part of the Clock/Calendar type, features a parallel interface and a 242B NVSRAM for data storage. Its capabilities include alarm functions, automatic daylight saving time adjustments, and leap year calculation. The BQ3287EMT outputs a square wave signal and supports both YY-MM-DD-dd date format and HH:MM:SS (12/24 hr) time format. Supplied in a 24-DIP Module (0.61", 15.49mm) for through-hole mounting, this device operates within a voltage range of 4.5V to 5.5V and is rated for temperatures from 0°C to 70°C. This component is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output |
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.61"", 15.49mm) |
| Mounting Type | Through Hole |
| Memory Size | 242B |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 24-DIP Module |
| Voltage - Supply, Battery | - |
| Current - Timekeeping (Max) | - |
| Programmable | Not Verified |
