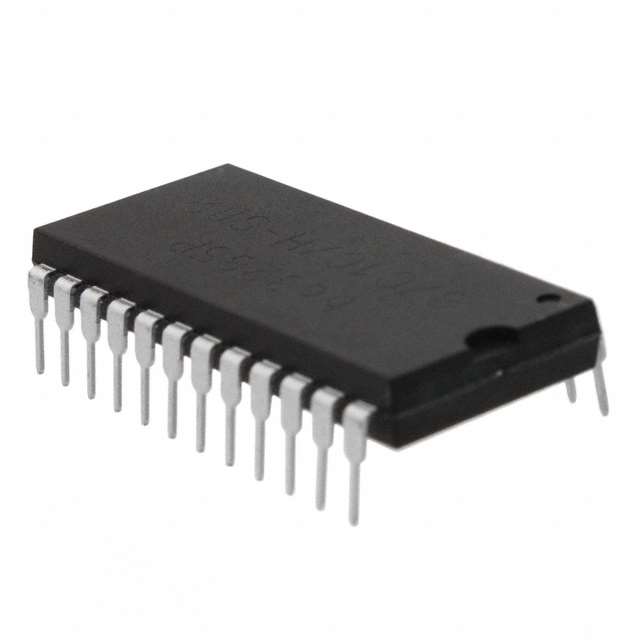

BQ3285P-SB2
IC RTC CLK/CALENDAR PAR 24DIPManufacturer: Texas Instruments
Categories: Real Time Clocks
Quality Control: Learn More
Texas Instruments BQ3285P-SB2 is a Clock/Calendar IC featuring an 114B parallel interface with a 24-DIP (0.600", 15.24mm) package. This component provides essential timekeeping functions including alarm, daylight savings, leap year support, and square wave output. It also includes NVSRAM for non-volatile data storage. The date format is YY-MM-DD-dd, and the time format is HH:MM:SS (12/24 hr). Operating supply voltage ranges from 4.5V to 5.5V, with battery backup voltage between 2.5V and 4V. Key features include a parallel interface for data transfer and a through-hole mounting type. Applications for this device span various industries requiring accurate timekeeping, such as industrial automation, consumer electronics, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output |
| Packaging | Bulk |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 114B |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 24-PDIP |
| Voltage - Supply, Battery | 2.5V ~ 4V |
| Current - Timekeeping (Max) | - |
| Programmable | Not Verified |
