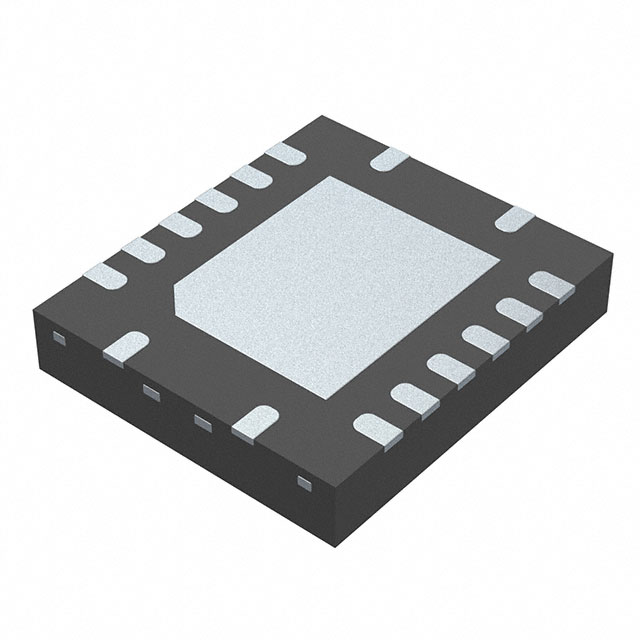

TPS27S100BRRKR
IC POWER MANAGEMENTManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 13A 16-WQFN (4x3.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | Relay, Solenoid Driver |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 13A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 16-WQFN (4x3.5) |
| Fault Protection | Over Load, Over Temperature, Short Circuit, UVLO |
Request a Quote
