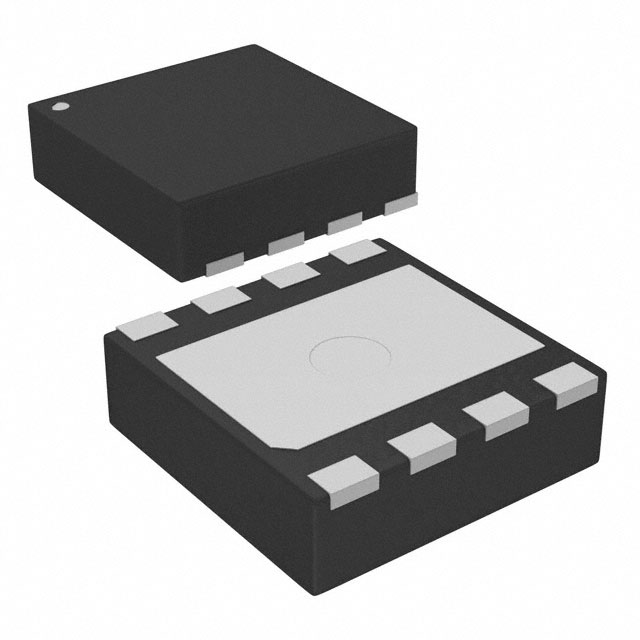

TPS2556QDRBTQ1
IC PWR SWITCH N-CHAN 1:1 8SONManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 5A 8-SON (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 22mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.5V ~ 6.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 8-SON (3x3) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Grade | Automotive |
| Qualification | AEC-Q100 |
