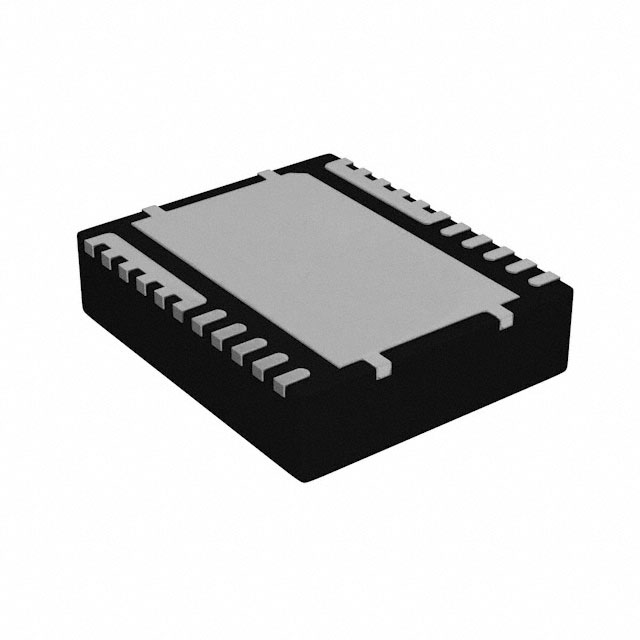

TPS254900AIRVCRQ1
IC PWR SWITCH N-CHAN 1:1 20WQFNManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 3.2A 20-WQFN (4x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | - |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | Differential |
| Voltage - Load | 0.5V ~ 0.7V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 6.5V |
| Current - Output (Max) | 3.2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 20-WQFN (4x3) |
| Fault Protection | Current Limiting, Over Voltage, UVLO |
| Grade | Automotive |
| Qualification | AEC-Q100 |
