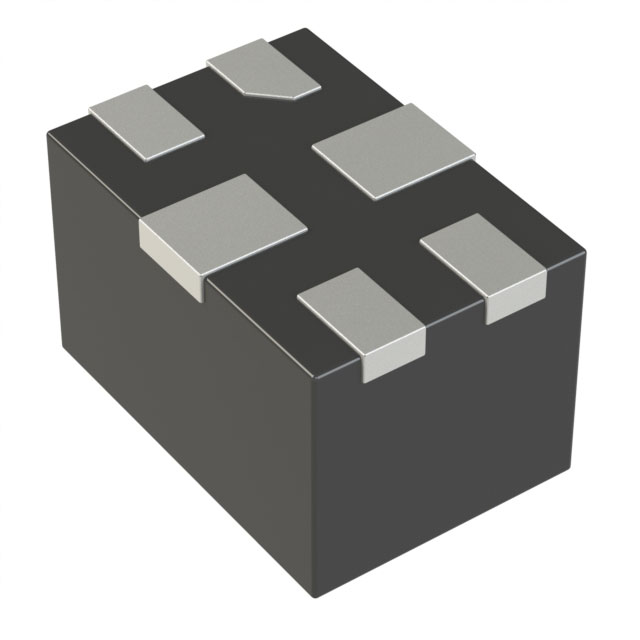

TPS22995RZGR
5.5-V, 3.5-A, 20-M ON-RESISTANCEManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 3.8A 6-WQFN-HR (1.5x0.75)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 18mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 0.4V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 1.5V ~ 5.5V |
| Current - Output (Max) | 3.8A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-WQFN-HR (1.5x0.75) |
| Fault Protection | Over Current, Over Temperature |
