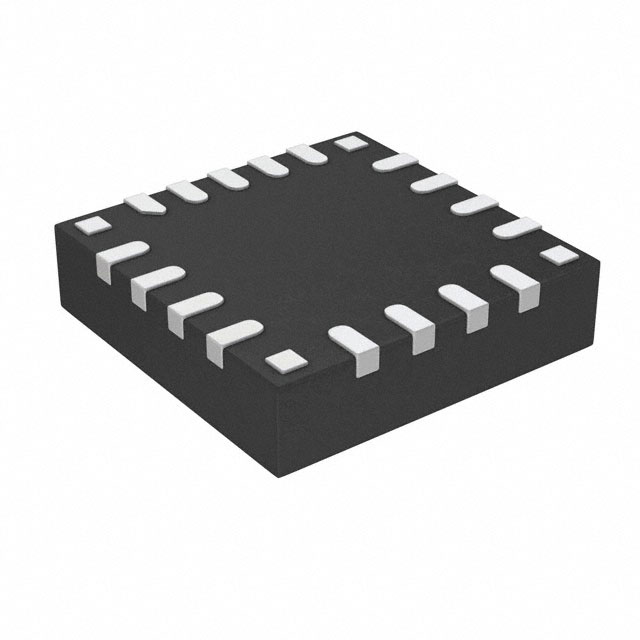

TPS22993PRLWR
IC PWR SWITCH N-CHAN 1:1 20WQFNManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Texas Instruments TPS22993PRLWR is a 1.2A N-Channel power switch designed for high-side load driving. This device, packaged in a 20-WQFN (3x3) with tape and reel packaging, offers a 1:1 input-to-output ratio and a low on-resistance of 15mOhm (typical). Key features include integrated load discharge and slew rate control for managed power-up and down sequences. The TPS22993PRLWR supports a load voltage range of 1V to 3.6V and operates within an ambient temperature range of -40°C to 85°C. With its I2C interface and four output configurations, this component is suitable for applications in consumer electronics, mobile devices, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | I2C |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 15mOhm |
| Input Type | - |
| Voltage - Load | 1V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 1.2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 20-WQFN (3x3) |
| Fault Protection | - |
