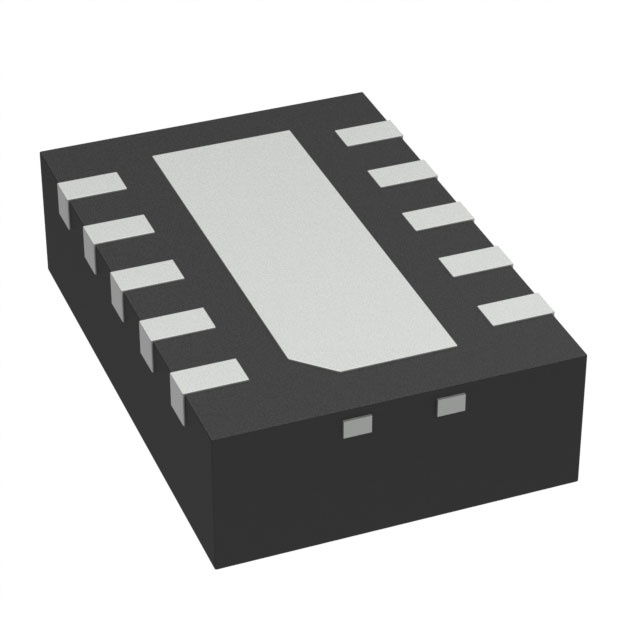

TPS22968NQDMGRQ1
IC PWR SWITCH N-CHAN 1:1 10WSONManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 4A 10-WSON (3x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 29mOhm |
| Input Type | - |
| Voltage - Load | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Current - Output (Max) | 4A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-WSON (3x2) |
| Fault Protection | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
