TPS22903YFPR
IC PWR SWITCH P-CHAN 1:1 4DSBGAManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Texas Instruments TPS22903YFPR is a single-channel, P-channel load switch designed for high-side power distribution. This device offers a 500mA output current capability with a low on-resistance of 66mOhm typical. The TPS22903YFPR features slew rate control for reduced inrush current and operates over an input voltage range of 1.1V to 3.6V. Its integrated ON/OFF control simplifies system design. The device is supplied in a compact 4-DSBGA (4-XFBGA) package, suitable for surface-mount applications. This power switch is commonly utilized in portable electronics, consumer devices, and communication systems requiring efficient power management. The TPS22903YFPR is delivered on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |

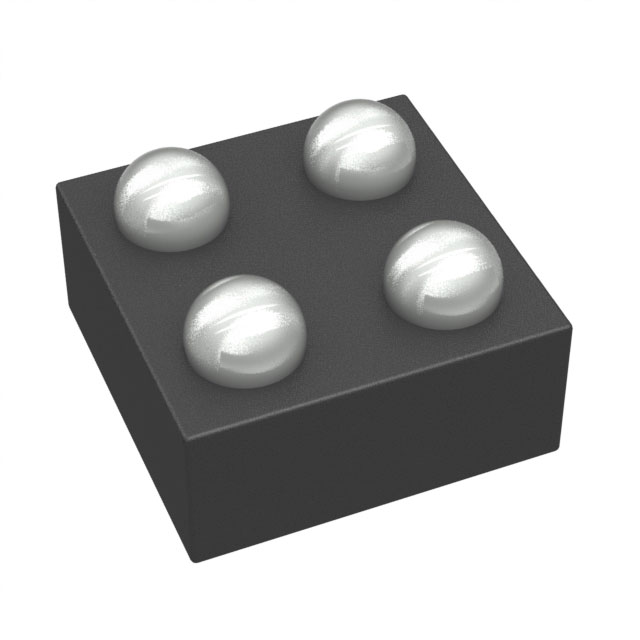

| Package / Case | 4-XFBGA, DSBGA |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 66mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.1V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 4-DSBGA |
| Fault Protection | - |
