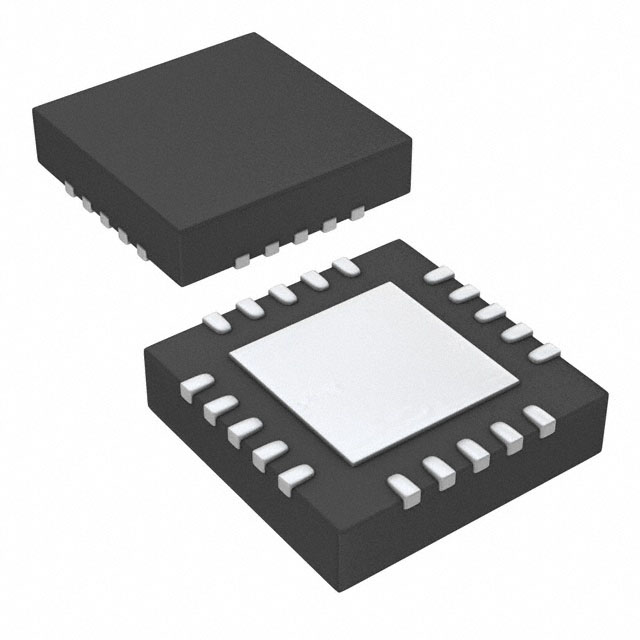

TPS2231MRGPR-1
IC PWR SWITCH 1:1 20QFNManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Texas Instruments TPS2231MRGPR-1 is a power distribution switch designed for high-side load management. This device features a 1:1 input-to-output ratio, capable of delivering up to 1.3A continuously. The TPS2231MRGPR-1 incorporates fixed current limiting and over-temperature fault protection to safeguard connected loads. Key operational features include Power Good signaling and a status flag output. With an Rds(on) of 45mOhm (typical), it offers efficient power switching. The component is housed in a 20-QFN (4x4) package, suitable for surface mounting. This power switch is utilized across various industries including consumer electronics and industrial automation. It operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Power Good, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Interface | - |
| Switch Type | ExpressCard™ Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 45mOhm |
| Input Type | - |
| Voltage - Load | 1.5V, 3.3V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 20-QFN (4x4) |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
