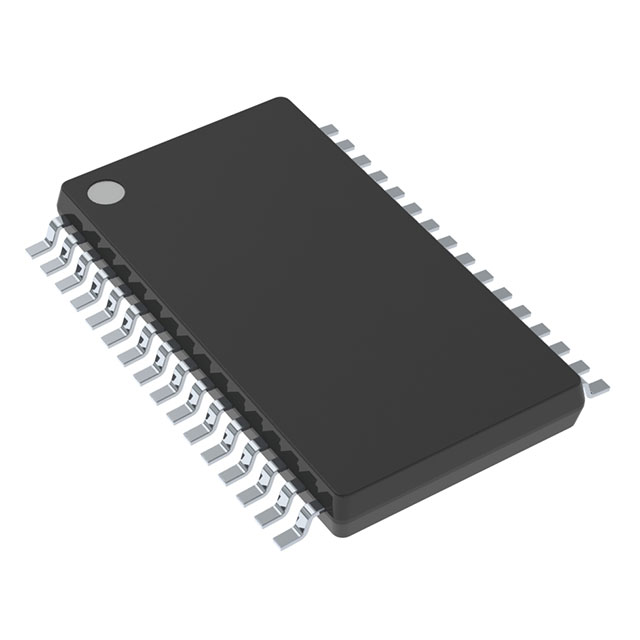

TPS2216DAPR
IC PWR SWITCH 1:1 32HTSSOPManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Texas Instruments TPS2216DAPR is a 1A power switch/driver designed for high-side output configurations. This component, housed in a 32-HTSSOP package, features fixed current limiting and over-temperature fault protection. It provides a 1:1 input-to-output ratio with a typical Rds On of 60mOhm, enabling efficient power delivery. The TPS2216DAPR includes a status flag for monitoring output conditions and supports serial interface for control. Its versatility makes it suitable for applications in consumer electronics, industrial automation, and telecommunications. Operating across a temperature range of -40°C to 125°C, this device is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-PowerTSSOP (0.240"", 6.10mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | Serial |
| Switch Type | PCMCIA Switch |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 60mOhm |
| Input Type | - |
| Voltage - Load | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-HTSSOP |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
Request a Quote
Clients Also Buy
TPS1HB16AQPWPRQ1
40-V, 16-M, 1-CH AUTOMOTIVE SMAR

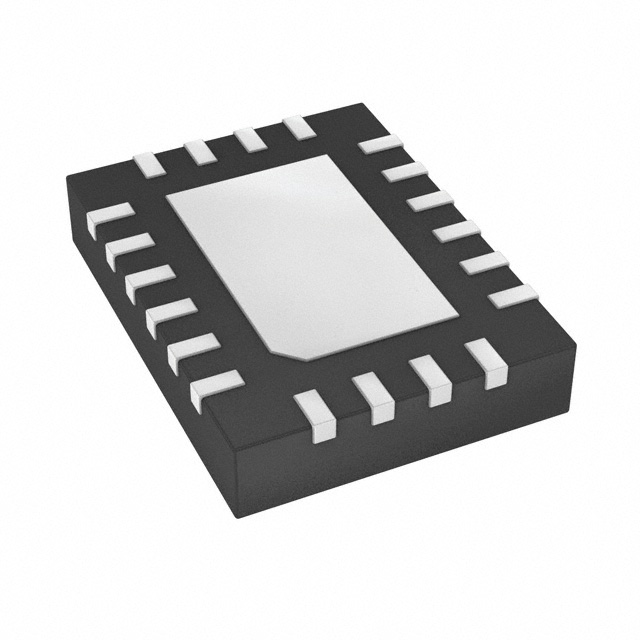

TPS254900AIRVCRQ1
