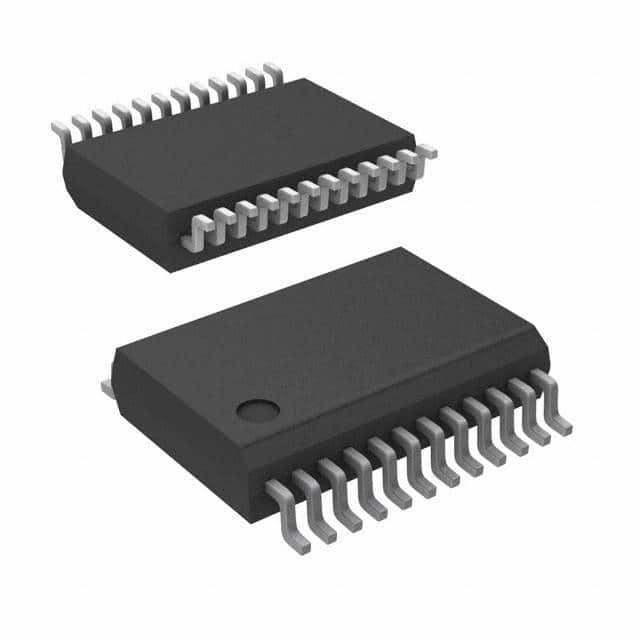

TPS2075DBR
IC PWR SWITCH N-CHAN 1:4 24SSOPManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:4 N-Channel 100mA 24-SSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Power Good, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.209"", 5.30mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 100mOhm |
| Input Type | - |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 100mA |
| Ratio - Input:Output | 1:4 |
| Supplier Device Package | 24-SSOP |
| Fault Protection | Over Temperature |
