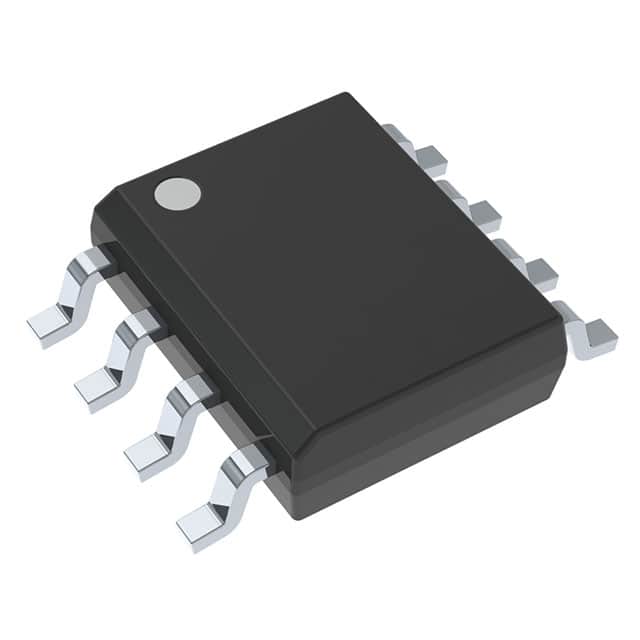

TPS2014DR
IC PWR SWITCH N-CHAN 1:1 8SOICManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Texas Instruments TPS2014DR is a single-channel N-channel power distribution switch designed for high-side load driving. This component offers a fixed current limit of 600mA and incorporates over-temperature and current limiting fault protection. The TPS2014DR features a status flag for output monitoring and an ON/OFF interface for control. With a low Rds(on) of 95mOhm typical, it is suitable for applications requiring efficient power management. The device operates within a load voltage range of 4.75V to 5.25V and is packaged in an 8-SOIC (0.154", 3.90mm Width) for surface mounting. This power switch is commonly employed in consumer electronics and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 95mOhm |
| Input Type | - |
| Voltage - Load | 4.75V ~ 5.25V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 600mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 8-SOIC |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
