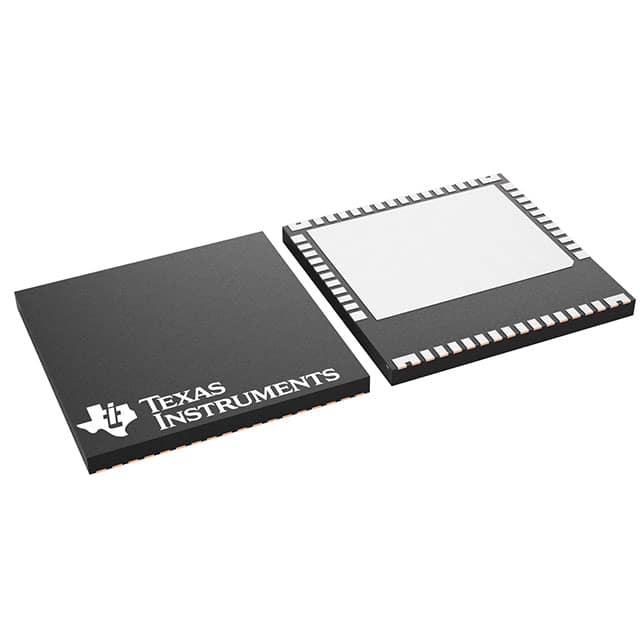

LMG3425R050RQZT
IC HALF BRIDGE DRVR 1.2A 54VQFNManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N/P-Channel 32A 54-VQFN (12x12)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-VQFN Exposed Pad |
| Output Type | N/P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic, PWM |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 43mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 0V ~ 600V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V |
| Current - Output (Max) | 32A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 54-VQFN (12x12) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO |
