LMG3410R150RWHT
SMART 150MOHM GAN FET WITH DRIVEManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 6A 32-VQFN (8x8)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, 5V Regulated Output |
| Packaging | Tape & Reel (TR) |

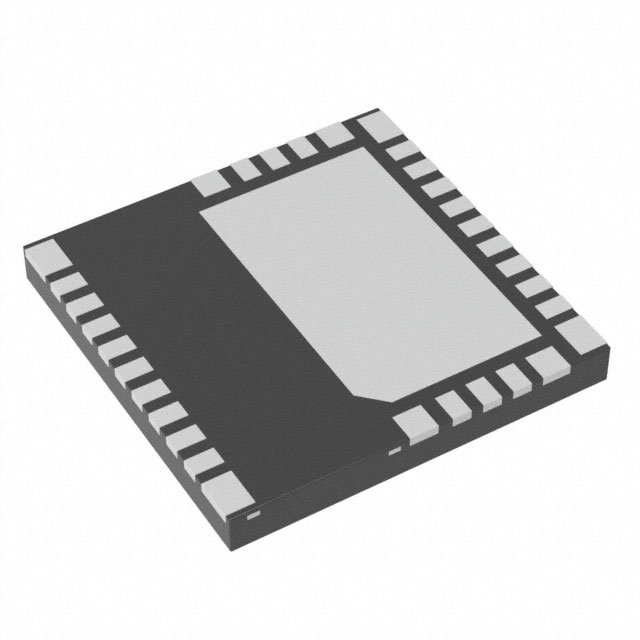

| Package / Case | 32-VQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic, PWM |
| Switch Type | Load Switch |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 150mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 480V (Max) |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 18V |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-VQFN (8x8) |
| Fault Protection | Over Current, Over Temperature, UVLO |
Request a Quote
