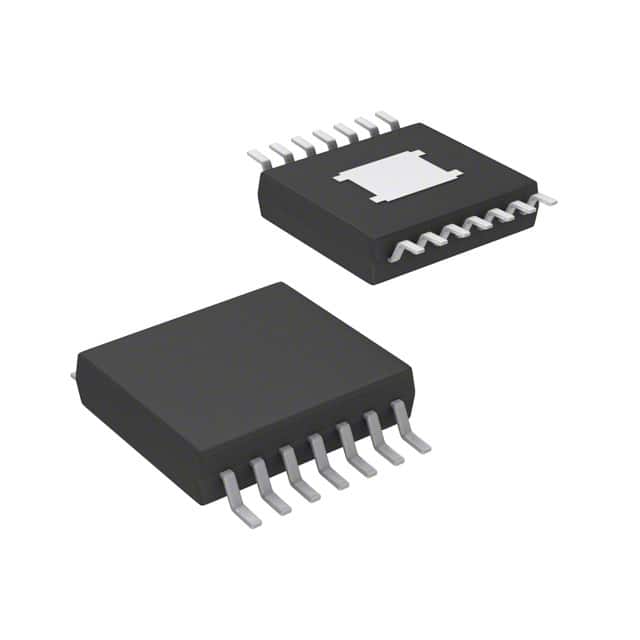

DRV104PWPR
IC PWR DRIVER 1:1 14HTSSOPManufacturer: Texas Instruments
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 1.2A 14-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Internal PWM, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | Relay, Solenoid Driver |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 8V ~ 32V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 14-HTSSOP |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
Request a Quote
