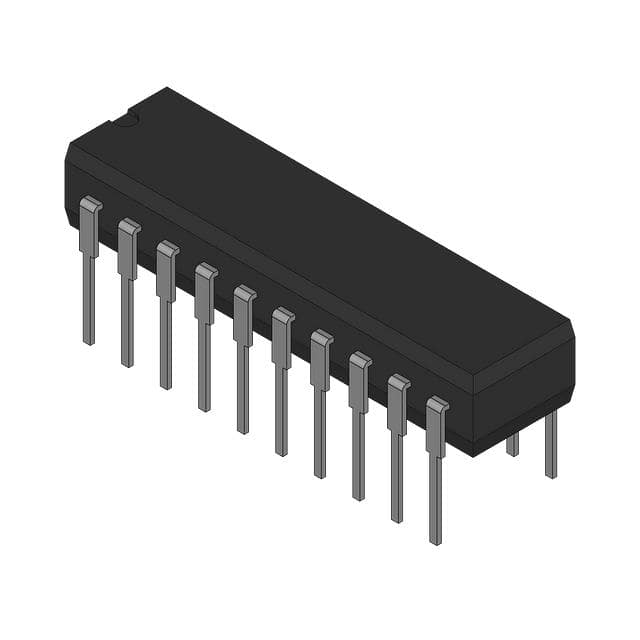

TIBPAL16R8-10MJB
OT PLD, 10NS, PAL-TYPE, TTL, CDIManufacturer: Texas Instruments
Categories: PLDs (Programmable Logic Device)
Quality Control: Learn More
Texas Instruments TIBPAL16R8-10MJB is a high-performance IMPACT-X™ PAL® logic device. This TTL-compatible, 20-macrocell PAL-type PLD offers a 10ns propagation delay, making it suitable for complex logic functions in demanding applications. The device features a 20-CDIP through-hole package, ensuring robust mounting for industrial and automotive environments. With an input voltage range of 4.75V to 5.25V, the TIBPAL16R8-10MJB is designed for reliable operation in a wide array of electronic systems. Its architecture is well-suited for applications requiring high-speed combinatorial and sequential logic implementation, often found in control systems, data processing, and communication infrastructure.
Additional Information
Series: IMPACT-X™ PAL®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Voltage - Input | 4.75V ~ 5.25V |
| Programmable Type | PAL |
| Supplier Device Package | 20-CDIP |
| Programmable | Not Verified |
