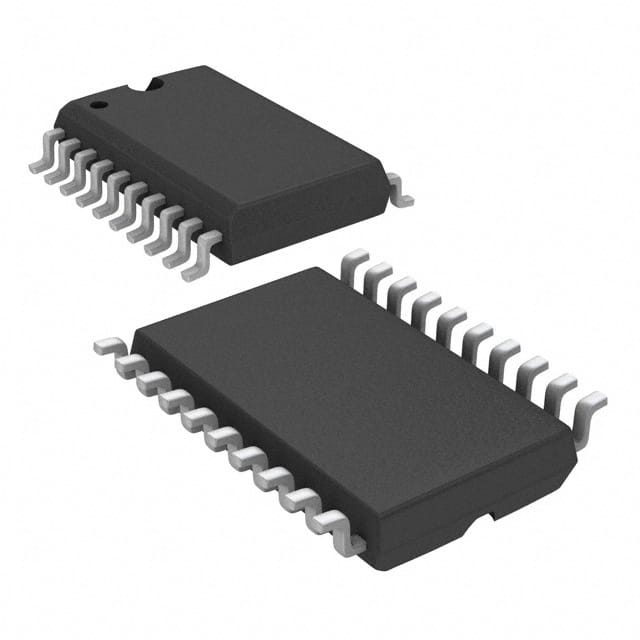

UCC28514DW
IC PFC CTR AVERAGE 200KHZ 20SOICManufacturer: Texas Instruments
Categories: PFC (Power Factor Correction)
Quality Control: Learn More
Texas Instruments UCC28514DW is a highly integrated controller designed for advanced Power Factor Correction (PFC) applications. This device operates in average current mode, enabling precise control for improved power quality. Featuring a switching frequency of 200kHz, it supports efficient operation in demanding power supply designs. The UCC28514DW is packaged in a 20-SOIC (0.295", 7.50mm Width) surface mount package, suitable for automated assembly. Its wide operating voltage range from 9.7V to 18V and a startup current of 100 µA facilitate robust power-up sequences. This component is commonly utilized in AC-DC power supplies, server power, and industrial automation equipment where efficient and compliant power conversion is critical. The operating temperature range is -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 9.7V ~ 18V |
| Frequency - Switching | 200kHz |
| Mode | Average Current |
| Supplier Device Package | 20-SOIC |
| Current - Startup | 100 µA |
