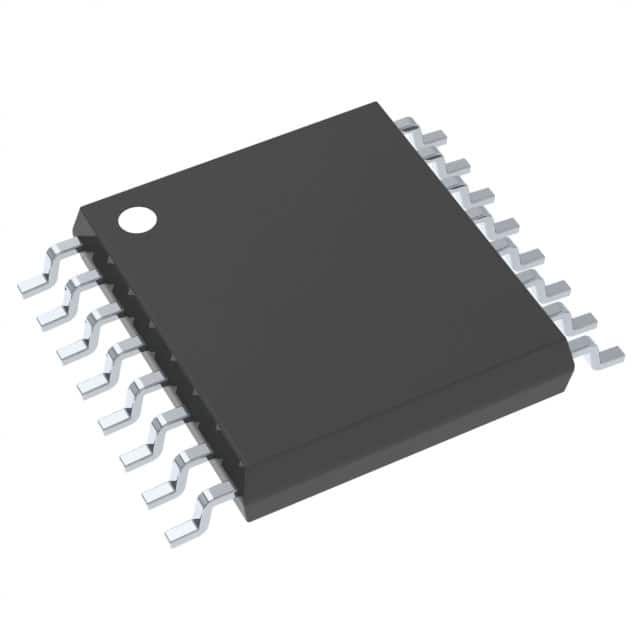

UCC2818APW
IC PFC CTRLR AVER 220KHZ 16TSSOPManufacturer: Texas Instruments
Categories: PFC (Power Factor Correction)
Quality Control: Learn More
Texas Instruments UCC2818APW is an advanced Average Current Mode PFC controller IC. This component is designed for efficient power factor correction in a broad switching frequency range of 6kHz to 220kHz. It operates with a typical startup current of 150 µA and a supply voltage range of 12V to 17V, making it suitable for various power supply designs. The UCC2818APW is supplied in a 16-TSSOP package, facilitating surface mount implementation. Its robust design and operating temperature range of -40°C to 85°C ensure reliable performance in demanding applications. This controller is widely utilized in consumer electronics, industrial power supplies, and server power systems where high power factor is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 12V ~ 17V |
| Frequency - Switching | 6kHz ~ 220kHz |
| Mode | Average Current |
| Supplier Device Package | 16-TSSOP |
| Current - Startup | 150 µA |
