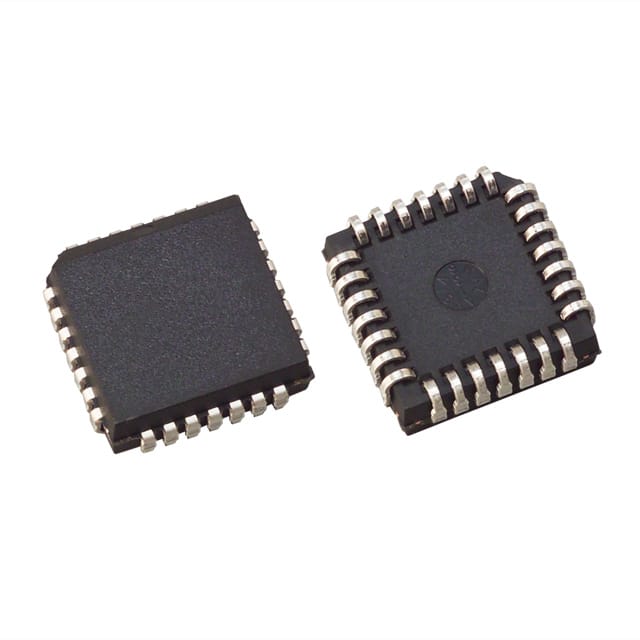

UC3625QG4
IC MOTOR DRIVER 10V-18V 28PLCCManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The Texas Instruments UC3625QG4 is a high-voltage motor driver IC designed for Brushless DC (BLDC) motor control. This component features a pre-driver configuration with three half-bridge outputs, enabling efficient commutation and direction management. Operating from a supply voltage range of 10V to 18V, the UC3625QG4 utilizes Power MOSFET and Power Darlington technology for robust power delivery. Its parallel interface facilitates straightforward integration into system designs. The device is housed in a 28-PLCC (J-Lead) surface mount package, suitable for applications requiring precise motor control in various industrial and commercial equipment. The UC3625QG4 is typically found in general-purpose motor drive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | Parallel |
| Operating Temperature | 0°C ~ 70°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 10V ~ 18V |
| Applications | General Purpose |
| Technology | Power MOSFET, Power Darlington |
| Voltage - Load | - |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
