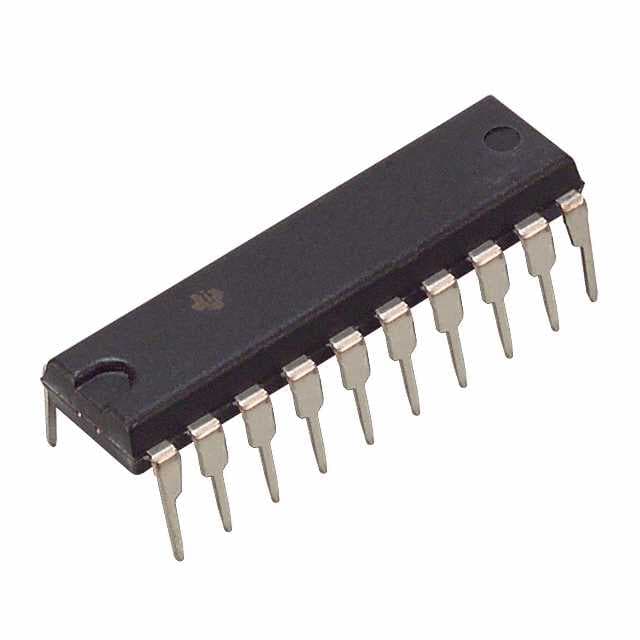

UC2638N
IC MOTOR DRIVER 10V-36V 20DIPManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The Texas Instruments UC2638N is a robust motor driver designed for brushed DC applications. This component offers parallel interface capabilities for straightforward control of commutation and direction management. Operating within a supply voltage range of 10V to 36V, the UC2638N features pre-driver output configurations utilizing two half-bridge stages. Its through-hole mounting design, housed in a 20-PDIP (0.300", 7.62mm) package, ensures reliable integration into various electronic systems. This device is well-suited for general-purpose motor control applications across industries requiring precise brushed DC motor operation. The operating temperature range is -25°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Voltage - Supply | 10V ~ 36V |
| Applications | General Purpose |
| Technology | - |
| Voltage - Load | - |
| Supplier Device Package | 20-PDIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
