DRV8899QWRGERQ1
AUTOMOTIVE 45-V, 1.0-A BIPOLAR SManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver NMOS SPI, Step/Direction 24-VQFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

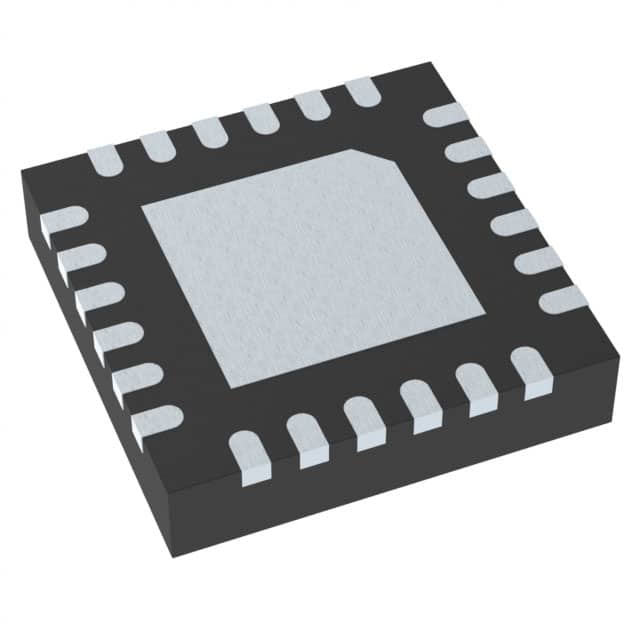

| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1A |
| Interface | SPI, Step/Direction |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 0V ~ 5.3V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | 4.5V ~ 45V |
| Supplier Device Package | 24-VQFN (4x4) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1 ~ 1/256 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
