DRV8881EPWP
IC MTR DRVR BIPLR 6.5-45V 28SSOPManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Texas Instruments DRV8881EPWP is a fully integrated bipolar stepper motor driver. This device incorporates a control logic interface and a dual H-bridge power stage utilizing DMOS technology. It supports parallel interface for direct control of motor phasing. The DRV8881EPWP is designed to drive bipolar stepper motors with output currents up to 1.4A and operating voltages from 6.5V to 45V. Its output configuration includes four half-bridges, enabling versatile motor control strategies. The component is housed in a 28-HTSSOP package for surface mounting and operates across a wide temperature range of -40°C to 150°C. Applications for this motor driver include general-purpose automation, industrial control systems, and robotics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-PowerTSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.4A |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 6.5V ~ 45V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 6.5V ~ 45V |
| Supplier Device Package | 28-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
Clients Also Buy
DRV8812RHDR
IC MTR DRV BIPOLAR 8.2-45V 28QFN

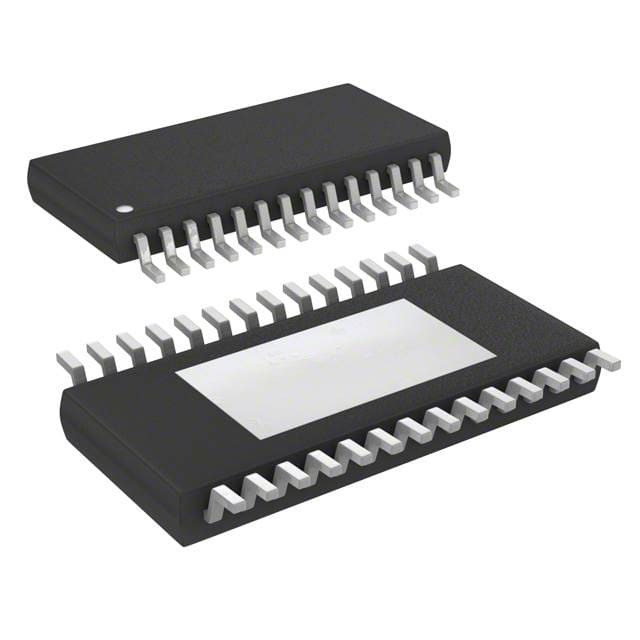

DRV8434PWPR
