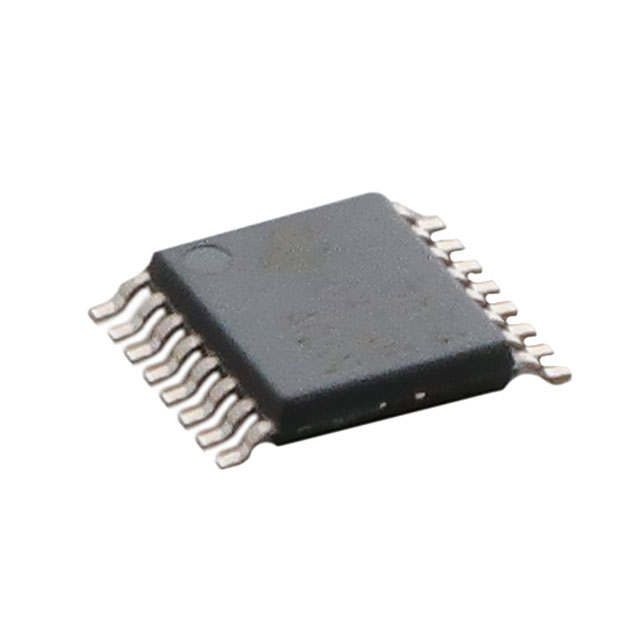

DRV8874PWPR
DRV8874 H-BRIDGE MOTOR DRIVERManufacturer: Texas Instruments
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver NMOS PWM 16-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerTSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 6A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 0V ~ 5V |
| Applications | Brushed DC |
| Technology | NMOS |
| Voltage - Load | 4.5V ~ 37V |
| Supplier Device Package | 16-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
